Windshield Washer Reservoir — 2016 workshop reference 1506

Windshield Washer Reservoir — original illustration 1, reference 1506Original colors & callouts · Select to enlarge

4. Remove the windshield washer reservoir.

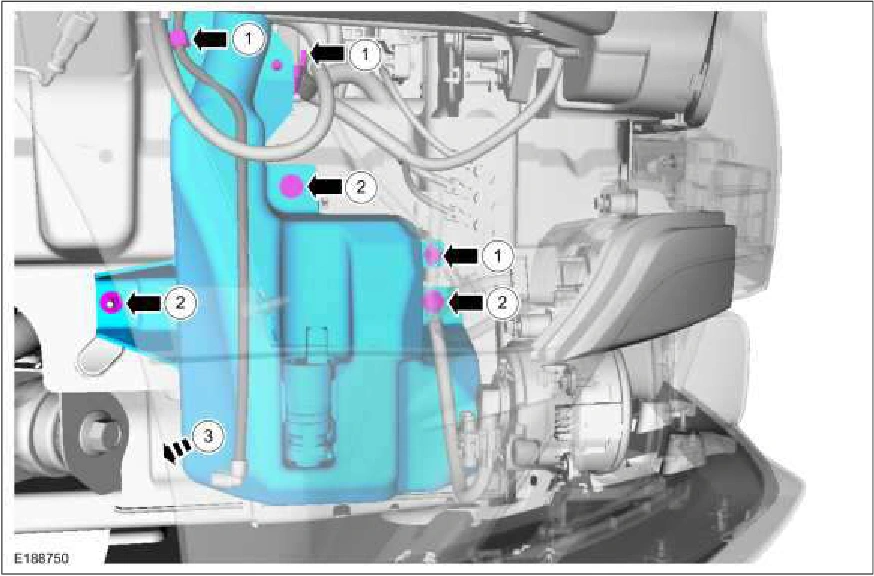

1. Release the hose routing clips.

2. Remove the mounting bolts and nut. Torque : 52 lb.in (5.9 Nm)

3. Remove the windshield washer reservoir.

Windshield Washer Reservoir — original illustration 2, reference 1506Original colors & callouts · Select to enlarge

Installation

1. NOTICE: Do not operate the washer pump prior to filling the windshield washer reservoir. Failure to

follow this instruction may result in premature failure.

To install, reverse the removal procedure. Material : Motorcraft® Premium Windshield Wash Concentrate with Bitterant (U.S.) / ZC-32-B2 (U.S.)

Source reference 1506
