Windshield Wiper Pivot Arm - LHD — 2016 workshop reference 1509

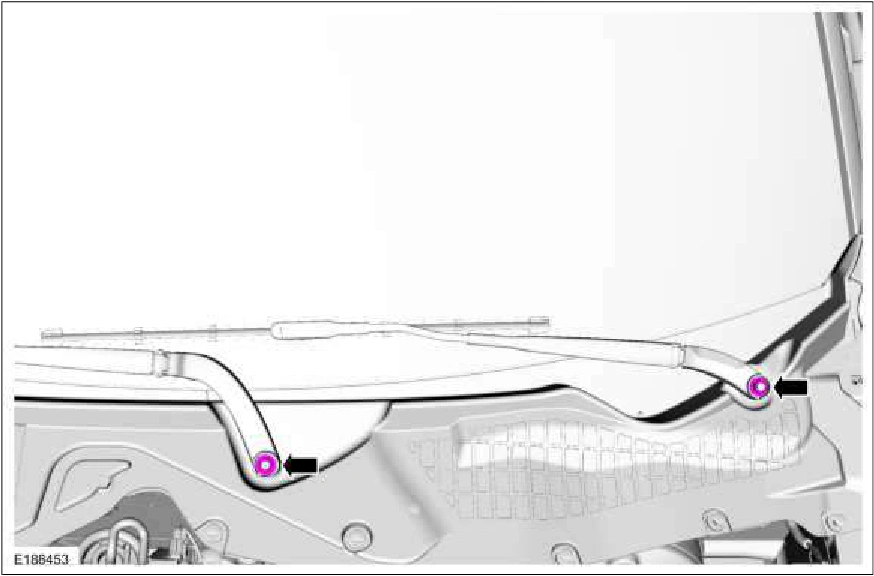

Windshield Wiper Pivot Arm - LHD — original illustration 1, reference 1509Original colors & callouts · Select to enlarge

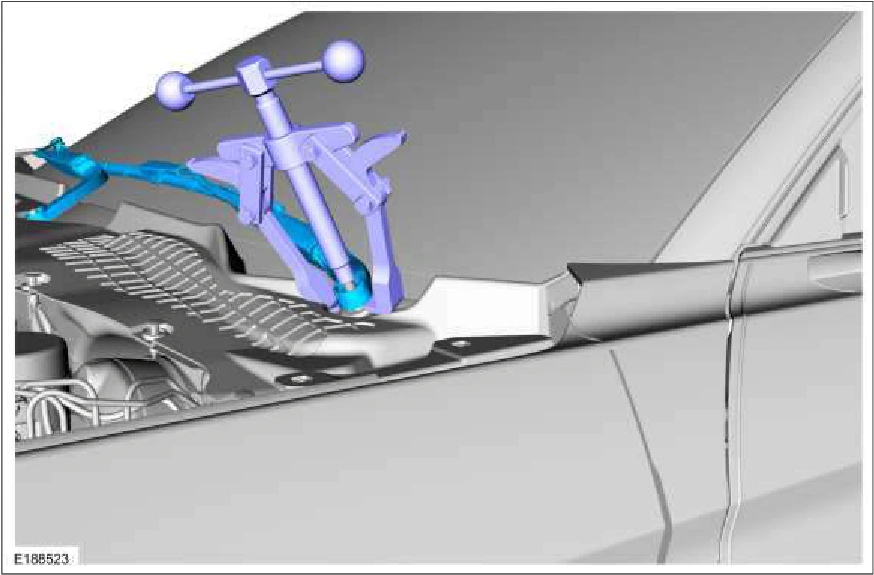

3. Remove the windshield wiper pivot arms. Use the General Equipment: Two Leg Puller

Windshield Wiper Pivot Arm - LHD — original illustration 2, reference 1509Original colors & callouts · Select to enlarge

Installation

1. Verify the windshield wiper motor is in the PARK position.

1. Set the ignition switch to the ON position.

2. Set the windshield wiper switch to run the wipers one complete cycle.

Source reference 1509
