Windshield Wiper Pivot Arm - LHD — 2016 workshop reference 1510

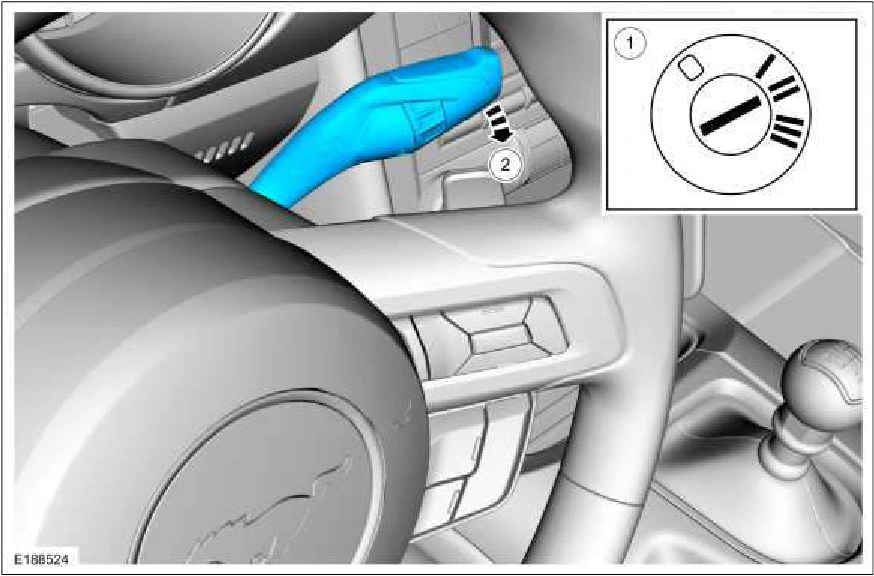

Windshield Wiper Pivot Arm - LHD — original illustration 1, reference 1510Original colors & callouts · Select to enlarge

2. Install the windshield wiper pivot arms.

1. Align the windshield wiper blades inside the marks on the windshield.

2. Install the windshield wiper pivot arm nuts. Torque : 26 lb.ft (35 Nm)

3. Turn the ignition switch off.

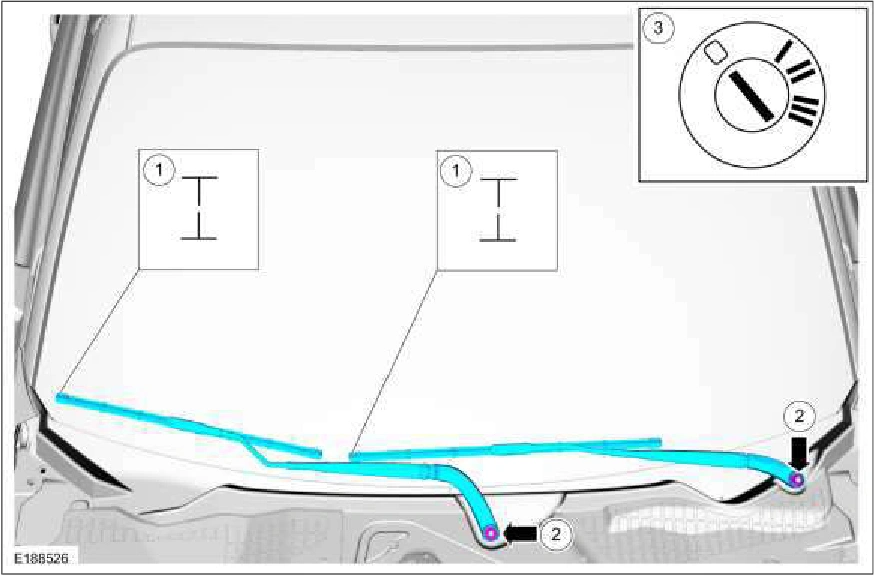

Windshield Wiper Pivot Arm - LHD — original illustration 2, reference 1510Original colors & callouts · Select to enlarge

3. Install the windshield wiper pivot arm nut covers.
