Windshield Wiper Pivot Arm - LHD — 2016 workshop reference 1508

501-16 Wipers and Washers 2016 Mustang

Removal and Installation Procedure revision date: 04/24/2015

Windshield Wiper Pivot Arm - LHD

Special Tool(s) / General Equipment

Two Leg Puller

Removal

NOTE: Removal steps in this procedure may contain installation details.

NOTE: The hood is removed in this procedure for clarity.

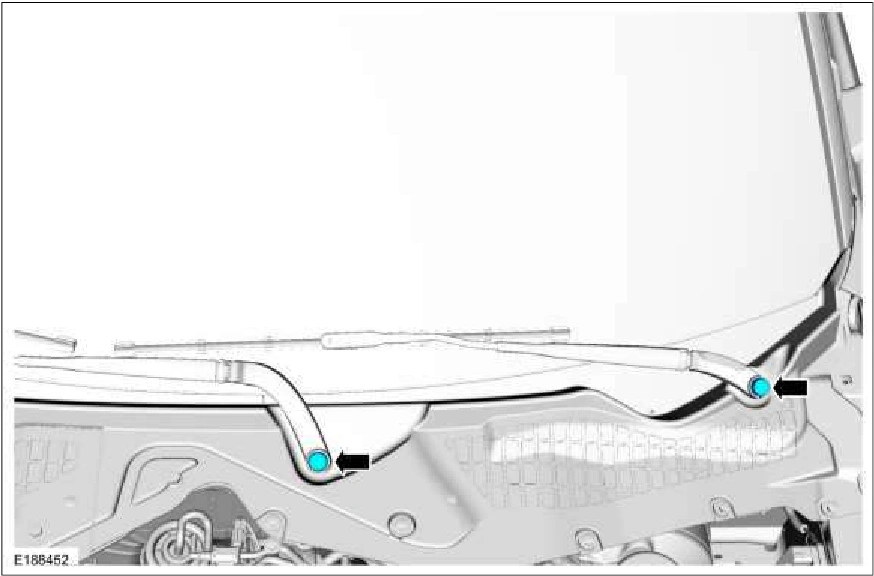

1. Remove the windshield wiper pivot arm nut covers.

Windshield Wiper Pivot Arm - LHD — original illustration 1, reference 1508Original colors & callouts · Select to enlarge

2. Remove the windshield wiper pivot arm nuts. Torque : 26 lb.ft (35 Nm)

Source reference 1508
