Windshield Washer Reservoir

501-16 Wipers and Washers 2016 Mustang

Removal and Installation Procedure revision date: 08/7/2015

Special Tool(s) / General Equipment

Fluid Suction Gun

Materials

Name	Specification
Motorcraft® Premium Windshield Wash Concentrate with Bitterant (U.S.) ZC-32-B2 (U.S.)	WSS-M14P19-A

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Siphon out the windshield washer fluid. Use the General Equipment: Fluid Suction Gun

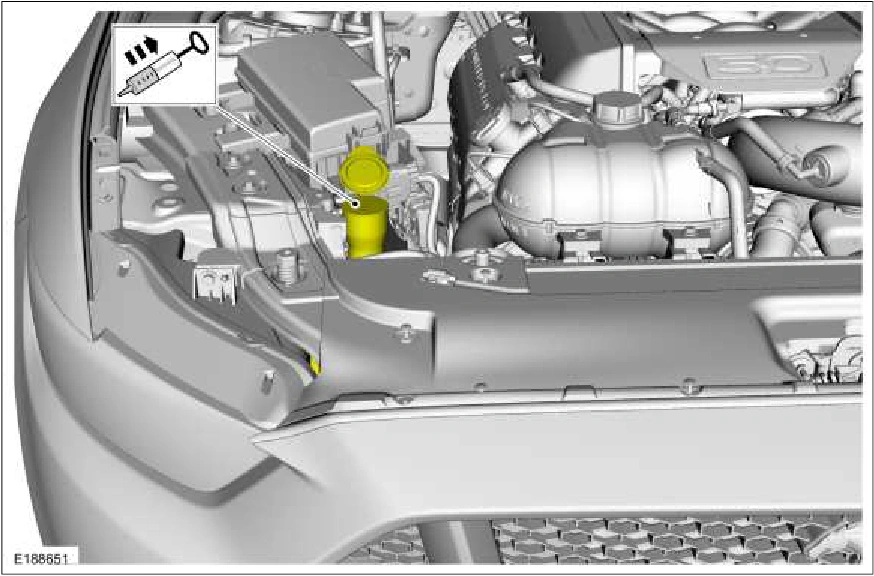

Windshield Washer Reservoir — original illustration 1, reference 1505Original colors & callouts · Select to enlarge

2. Remove the RH fender splash shield. Refer to: Fender Splash Shield (501-02 Front End Body Panels, Removal and Installation).

3. NOTE: Be prepared to collect escaping fluid.

Disconnect the windshield washer pump electrical connector. Disconnect the washer hose coupling. Refer to: Washer Hose Coupling (501-16 Wipers and Washers, General Procedures).
