Wiper Linkage Assembly - LHD — 2016 workshop reference 1513

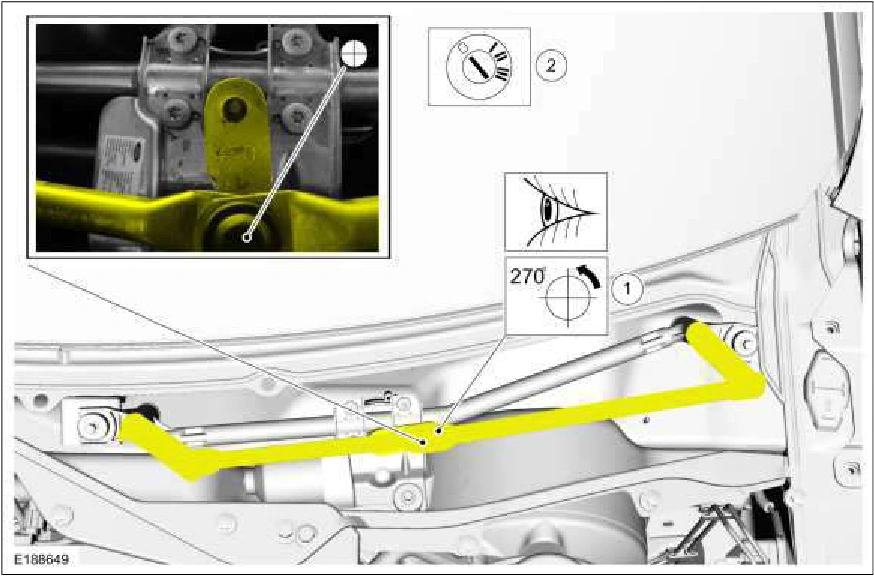

Wiper Linkage Assembly - LHD — original illustration 1, reference 1513Original colors & callouts · Select to enlarge

4. NOTE: Follow the unique instructions or graphic for this step in the installation.

Remove the wiper linkage assembly mounting bolts, disconnect the windshield wiper motor electrical connector and remove the wiper linkage assembly. Torque : 80 lb.in (9 Nm)

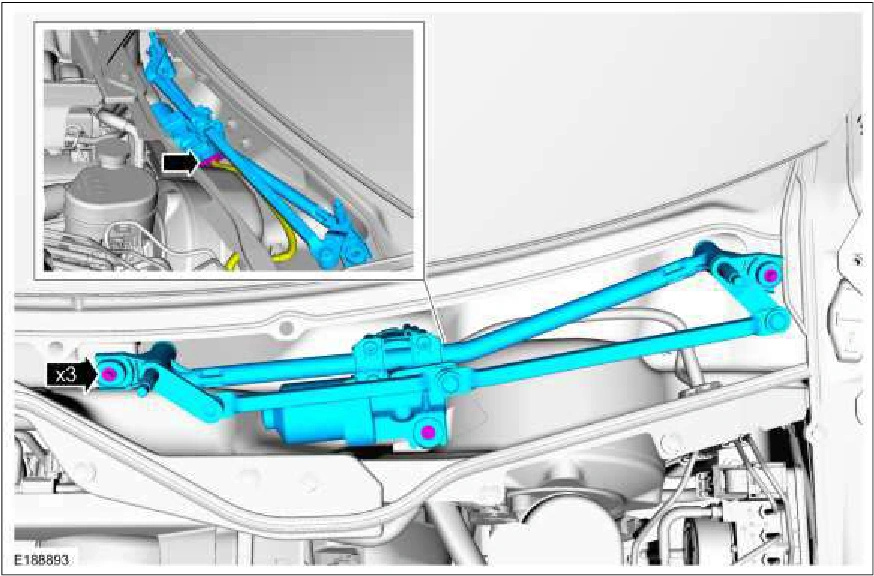

Wiper Linkage Assembly - LHD — original illustration 2, reference 1513Original colors & callouts · Select to enlarge

5. NOTE: This step is only necessary when installing a new component.

Remove the wiper linkage assembly links from the motor crank.

1. Remove the left hand link.

2. Remove the right hand link.
