Installation
NOTICE: The windshield wiper motor must be returned to the PARK position before the wiper pivot arms can be installed. Failure to follow this instruction may result in wiper pivot arm damage.
1. To install, reverse the removal procedure.
2. NOTE: Install all the bolts finger tight before final tightening.

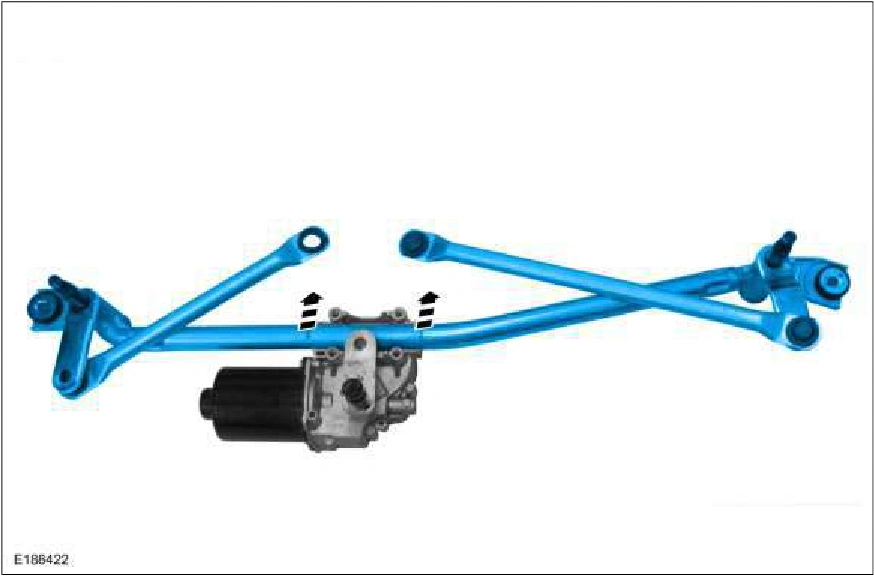

Install the wiper linkage assembly.
1. Connect the windshield wiper motor electrical connector.
2. Install the wiper linkage assembly mounting bolt. Torque : 80 lb.in (9 Nm)
3. Install the wiper linkage assembly mounting bolt. Torque : 80 lb.in (9 Nm)
4. Install the wiper linkage assembly mounting bolt. Torque : 80 lb.in (9 Nm)
