Windshield Wiper Motor - LHD — 2016 workshop reference 1517

501-16 Wipers and Washers 2016 Mustang

Removal and Installation Procedure revision date: 04/24/2015

Windshield Wiper Motor - LHD

Base Part Number: 17508

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the wiper linkage assembly. Refer to: Wiper Linkage Assembly - LHD (501-16 Wipers and Washers, Removal and Installation).

2. NOTICE: Be careful not to damage the link seals during removal. Failure to follow this instruction

may result in poor windshield wiper performance.

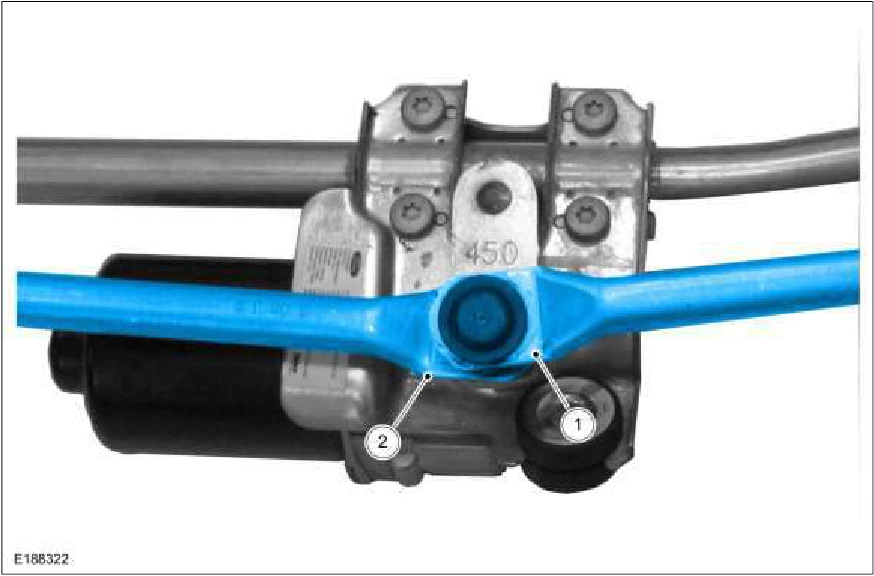

Remove the wiper linkage assembly links from the motor crank.

1. Remove the LH link.

2. Remove the RH link.

Windshield Wiper Motor - LHD — original illustration 1, reference 1517Original colors & callouts · Select to enlarge

3. Remove the windshield wiper motor bracket.

1. Remove the mounting bolts. Torque : 115 lb.in (13 Nm)

2. Slide the bracket out.
