Wiper Linkage Assembly - LHD — 2016 workshop reference 1514

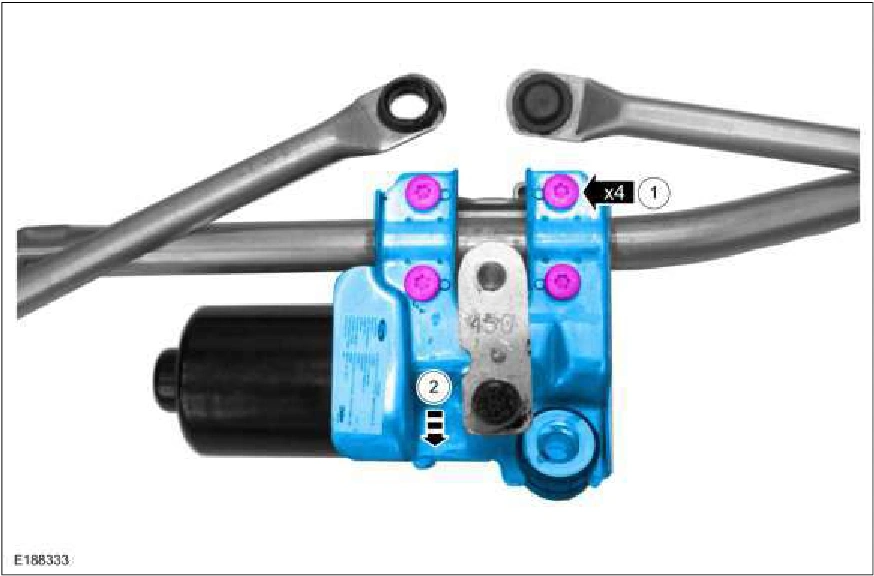

Wiper Linkage Assembly - LHD — original illustration 1, reference 1514Original colors & callouts · Select to enlarge

6. NOTE: This step is only necessary when installing a new component.

Remove the windshield wiper motor bracket.

1. Remove the mounting bolts. Torque : 115 lb.in (13 Nm)

2. Slide the bracket out.

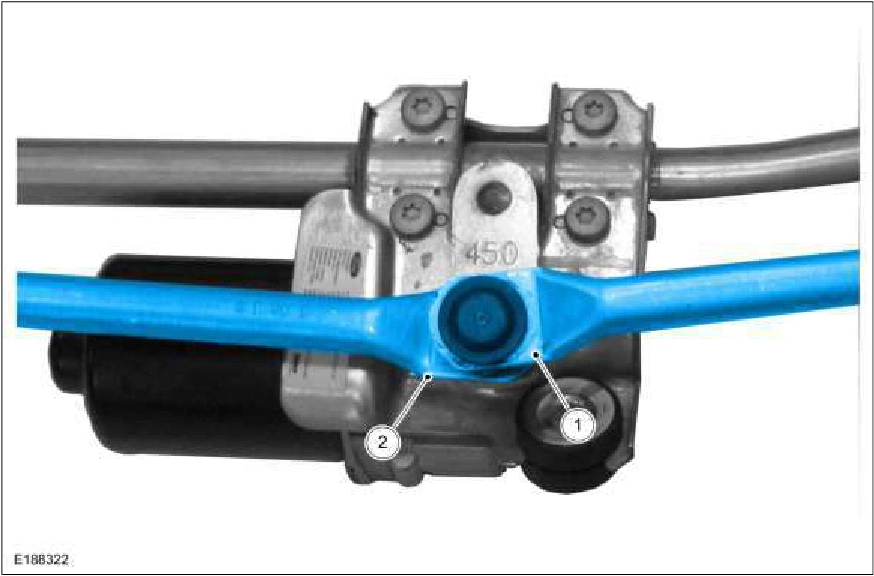

Wiper Linkage Assembly - LHD — original illustration 2, reference 1514Original colors & callouts · Select to enlarge

7. NOTE: This step is only necessary when installing a new component.

Remove the wiper linkage assembly from the windshield wiper motor.

Source reference 1514
