Rain Sensor — 2016 workshop reference 1500

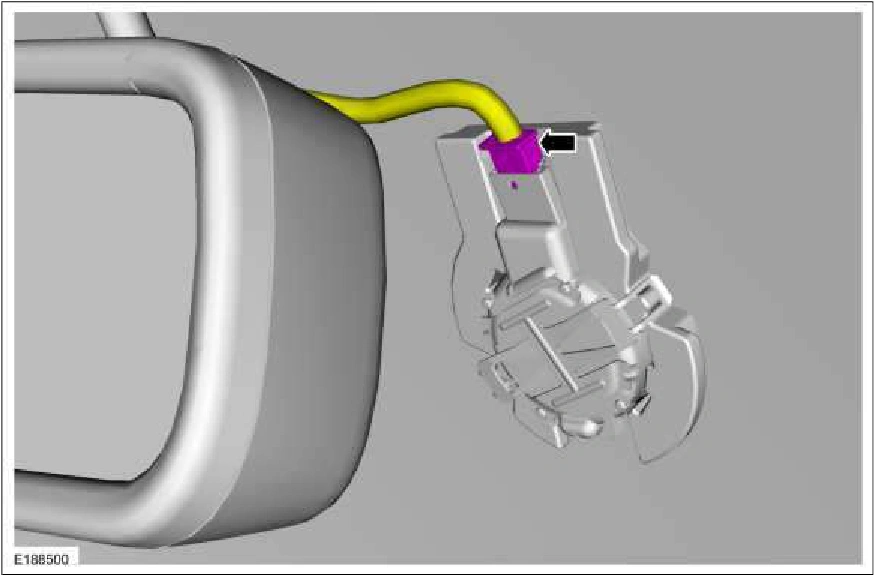

Rain Sensor — original illustration 1, reference 1500Original colors & callouts · Select to enlarge

3. Remove the rain sensor.

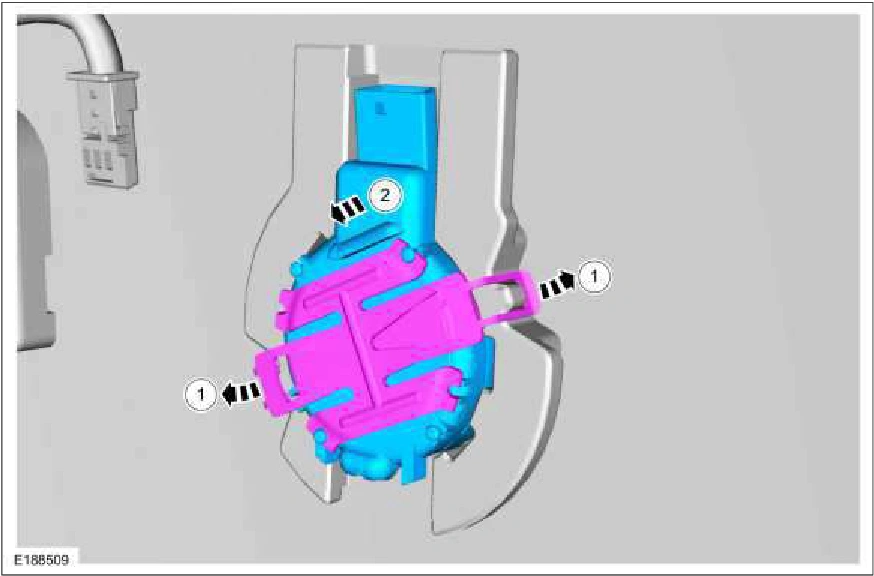

1. Release the rain sensor retaining clip tabs.

2. Remove the rain sensor from the mounting bracket.

Rain Sensor — original illustration 2, reference 1500Original colors & callouts · Select to enlarge

Installation

1. Clean the windshield glass area of foreign materials. Material : Motorcraft® Ultra-Clear Spray Glass Cleaner (U.S.) / ZC-23 (U.S.) (ESR-M14P5-A)

Source reference 1500
