Washer Hose Repair

501-16 Wipers and Washers 2016 Mustang

General Procedures Procedure revision date: 10/28/2015

Repair

NOTE: This procedure may be carried out on rubber hoses only. If a plastic washer hose is damaged, a new washer hose must be installed.

1. Locate and verify the damaged washer hose.

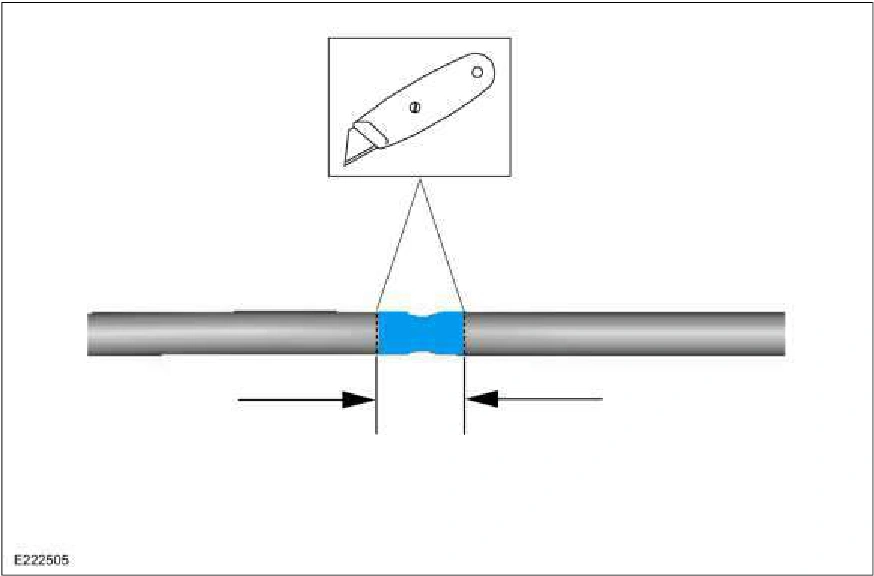

2. Cut the hose cleanly and remove the damaged portion of the washer hose. Dimension : 0.5000 in (12.7 mm)

Washer Hose Repair — original illustration 1, reference 1497Original colors & callouts · Select to enlarge

3. Install a windshield washer hose adapter between the cut ends of the hose.

Source reference 1497
