Convertible Top Front Panel Side Weatherstrip — 2016 workshop reference 1596

Convertible Top Front Panel Side Weatherstrip — original illustration 1, reference 1596Original colors & callouts · Select to enlarge

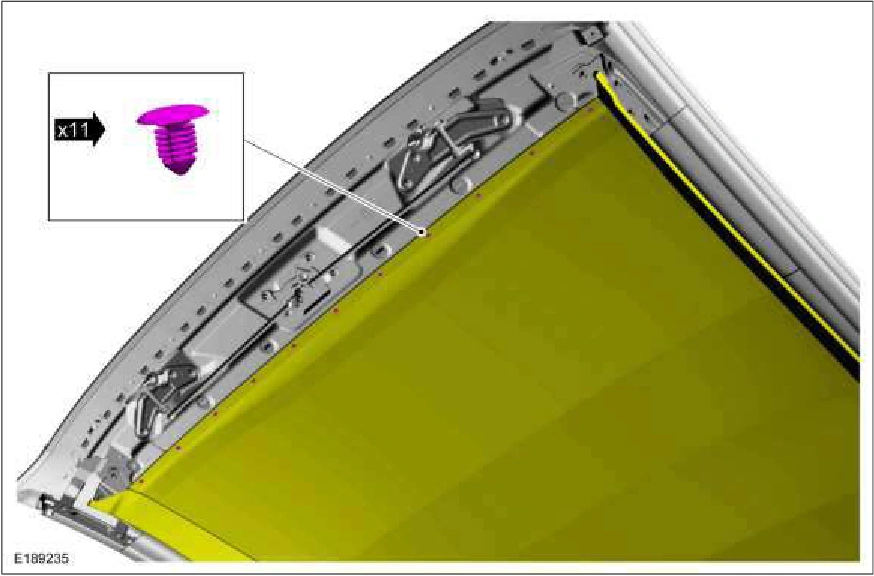

5. Remove the headliner push pin retainers along the back of the convertible top front panel. Torque : 25 lb.in (2.8 Nm)

Convertible Top Front Panel Side Weatherstrip — original illustration 2, reference 1596Original colors & callouts · Select to enlarge

6. NOTE: LH side shown, RH similar.

Remove the headliner tension bracket retainers and bracket from the convertible top front panel. Torque : 25 lb.in (2.8 Nm)
