Convertible Top Front Panel

501-18 Convertible Top

2016 MustangConvertibleReference 1,593 / 6,619HTML edition

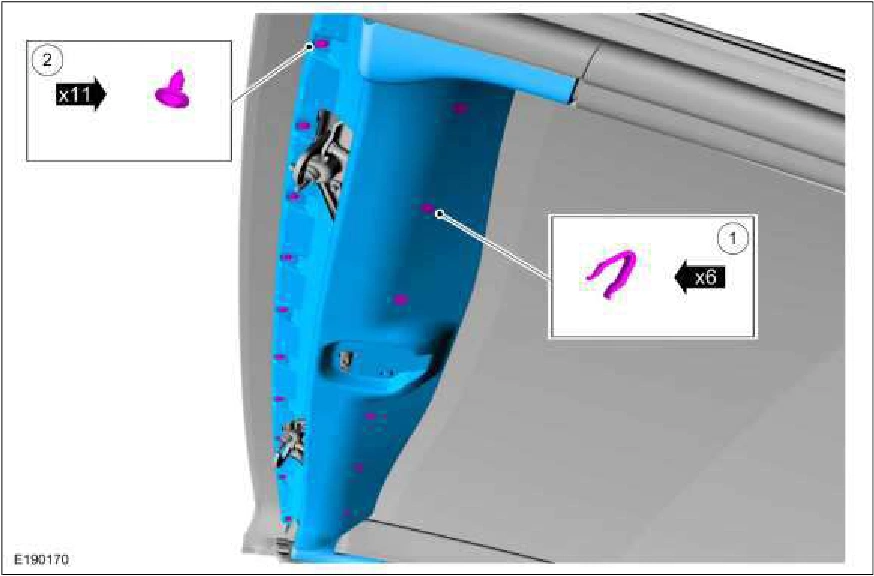

Convertible Top Front Panel — original illustration 1, reference 1593Original colors & callouts · Select to enlarge

17. Install the convertible top latch handle. Torque : 31 lb.in (3.5 Nm)

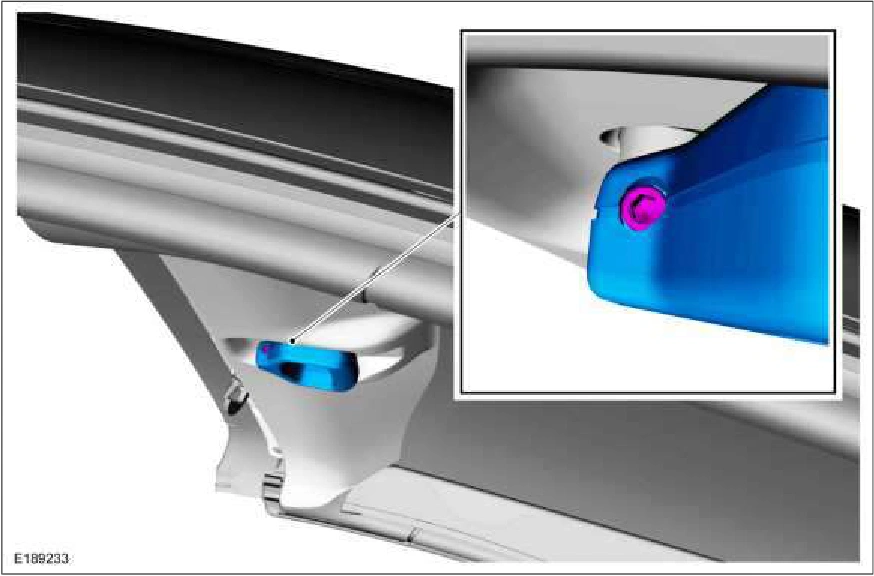

Convertible Top Front Panel — original illustration 2, reference 1593Original colors & callouts · Select to enlarge

Source reference 1593
