Convertible Top Front Panel — 2016 workshop reference 1592

Convertible Top Front Panel — original illustration 1, reference 1592Original colors & callouts · Select to enlarge

15. Remove the convertible top latch handle.

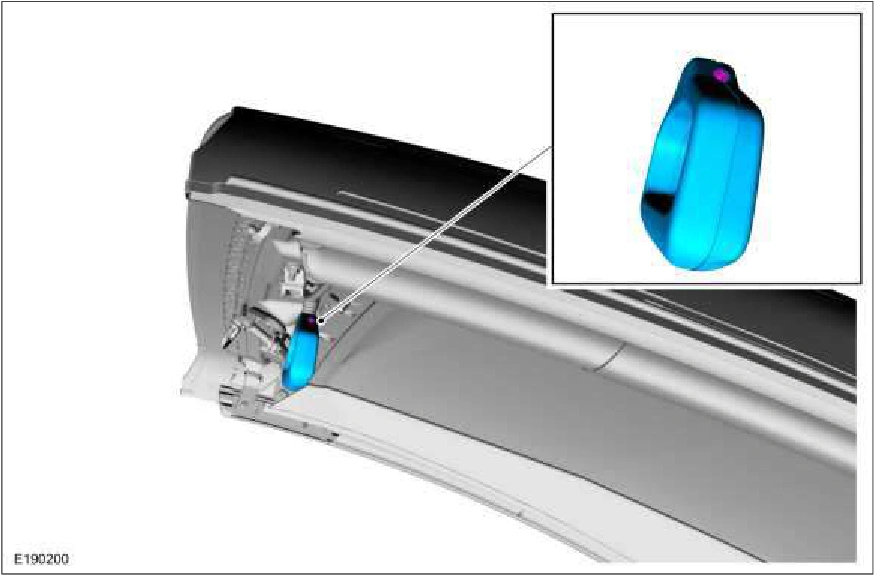

Convertible Top Front Panel — original illustration 2, reference 1592Original colors & callouts · Select to enlarge

16. Install the convertible top front panel trim.

1. Position the convertible top front panel trim and attach the clips under the back of the convertible top front panel trim.

2. Install the convertible top front panel trim retainers on the front of the trim. Torque : 25 lb.in (2.8 Nm)
