Convertible Top Front Panel — 2016 workshop reference 1589

RH side shown, LH side similar.

On both sides. Install the headliner tension bracket to the convertible top front panel. Torque : 18 lb.in (2 Nm)

Convertible Top Front Panel — original illustration 1, reference 1589Original colors & callouts · Select to enlarge

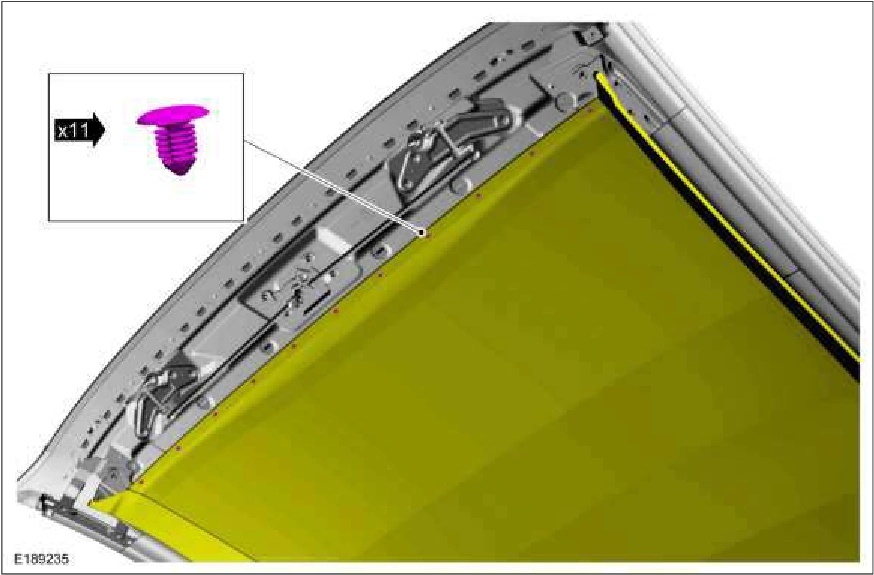

9. Position the headliner and install the headliner push pin retainers along the back of the convertible top front panel.

Convertible Top Front Panel — original illustration 2, reference 1589Original colors & callouts · Select to enlarge

10. NOTE: The retainer does not need to be tightened at this time.

Close the convertible top and install the convertible top latch handle and retainer.
