Convertible Top Front Panel — 2016 workshop reference 1586

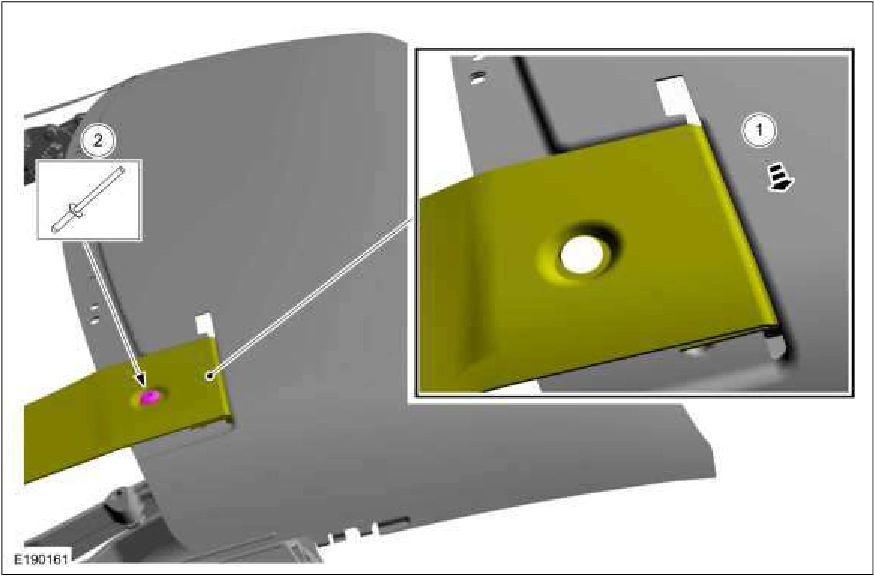

Convertible Top Front Panel — original illustration 1, reference 1586Original colors & callouts · Select to enlarge

3. NOTE: RH side shown, LH side similar.

On both sides. Connect the convertible top tension cable to the convertible top front panel.

Convertible Top Front Panel — original illustration 2, reference 1586Original colors & callouts · Select to enlarge

4. Fold the front of the convertible top material over the front of the convertible top front panel.

Source reference 1586
