Convertible Top Front Panel — 2016 workshop reference 1584

2. Slide the stay pad to the center of the convertible top front panel to disconnect the stay pad.

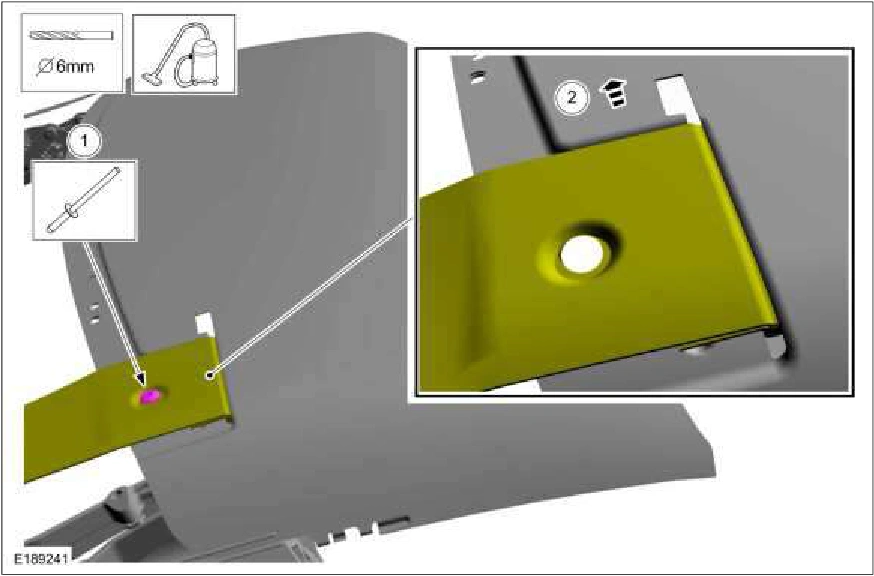

Convertible Top Front Panel — original illustration 1, reference 1584Original colors & callouts · Select to enlarge

13. NOTE: LH side shown, RH side similar.

On both sides. Remove the convertible top front panel.

1. With the help of an assistant. Remove the frame to convertible top front panel retainers.

2. NOTE: If equipped, retain the shims for installation on both sides.

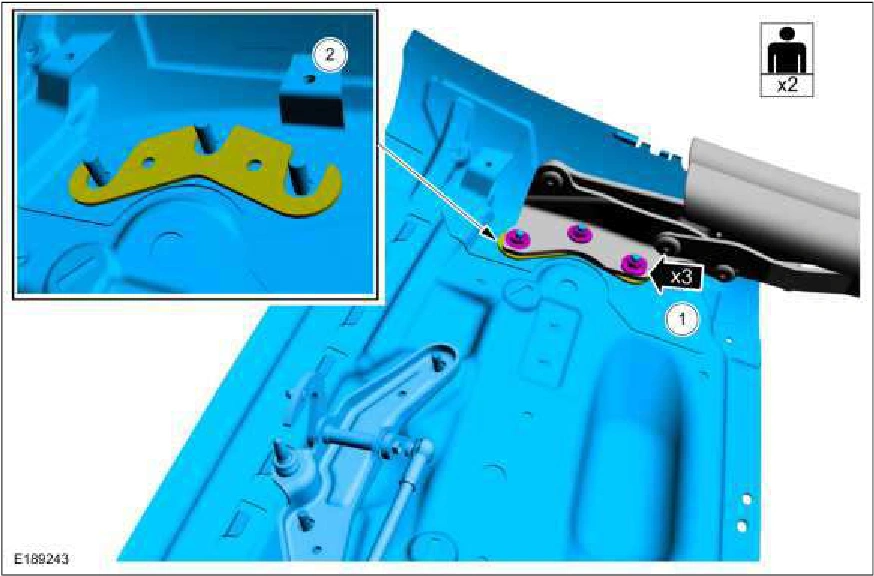

Convertible Top Front Panel — original illustration 2, reference 1584Original colors & callouts · Select to enlarge

Installation

Source reference 1584
