Convertible Top Front Panel — 2016 workshop reference 1585

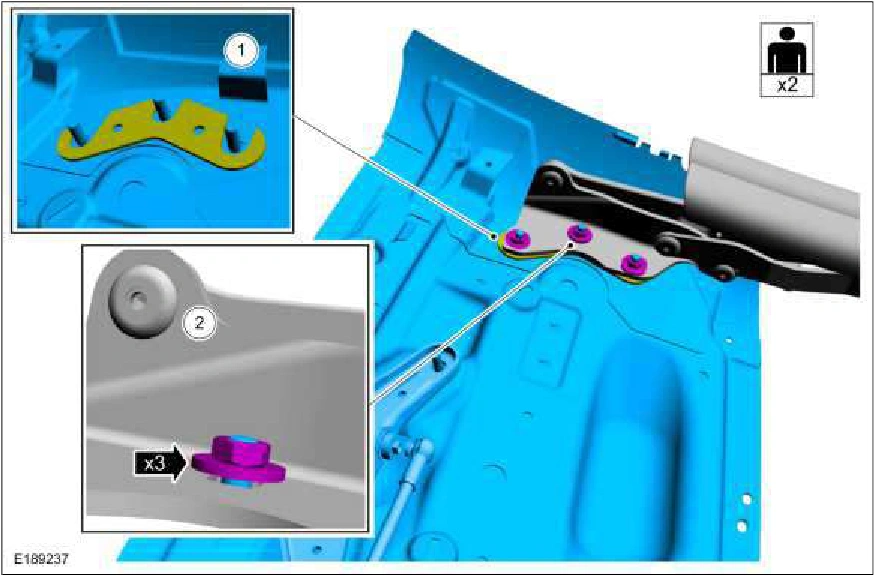

1. NOTE: LH side shown, RH side similar.

On both sides with the help of an assistant, loose install the convertible top front panel.

1. Position the shims as removed.

2. NOTE: The convertible top front panel retainers are loose installed at this point so the alignment of the panel to frame can be set later in the procedure by closing and latching the convertible top.

Position the convertible top front panel and loose install the retainers.

Convertible Top Front Panel — original illustration 1, reference 1585Original colors & callouts · Select to enlarge

2. NOTE: RH side shown, LH side similar.

On both sides. Attach the stay pad to the convertible top front panel.

1. Position the stay pad and slide outward to proper position for installing the rivet.

2. Install the stay pad rivets attaching the stay pad to the convertible top front panel. Use the General Equipment: Rivet Gun
