Convertible Top Front Panel

501-18 Convertible Top

2016 MustangConvertibleReference 1,588 / 6,619HTML edition
← Chapter contentsProcedure contents

front panel.

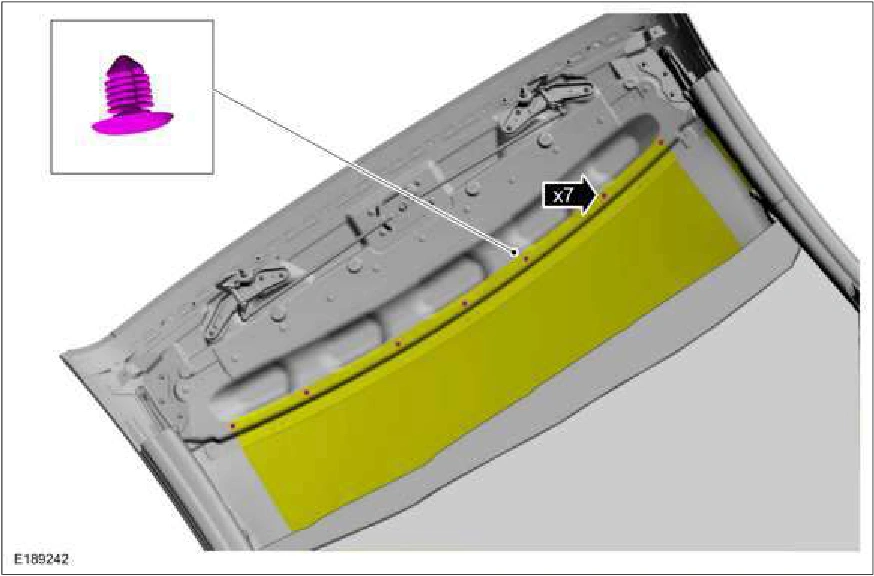

Convertible Top Front Panel — original illustration 1, reference 1588Original colors & callouts · Select to enlarge

7. NOTE: RH side shown, LH side similar.

On both sides. Install the front panel side weatherstrip and bracket assembly.

1. Align the front panel side weatherstrip and bracket assembly using the marks applied during removal.

2. Tighten the front panel side weatherstrip and bracket assembly retainers. Torque : 62 lb.in (7 Nm)

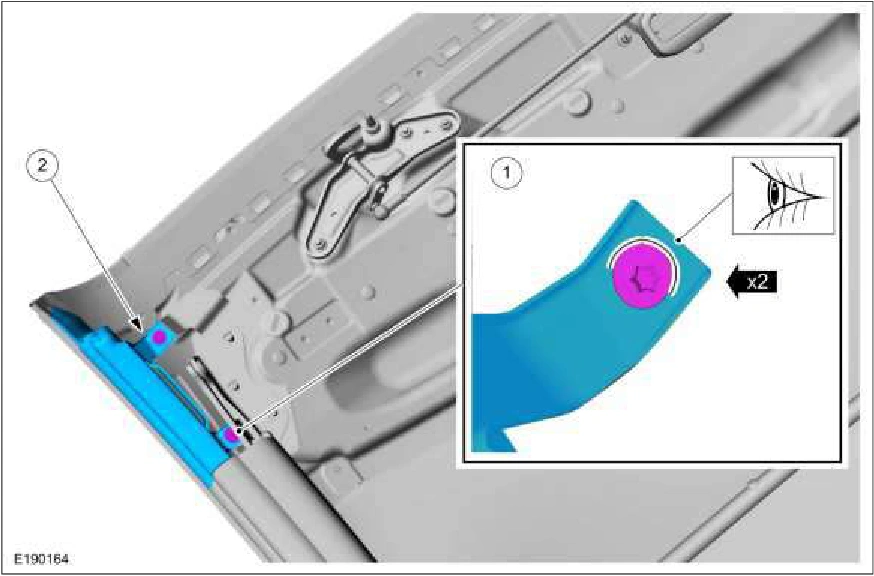

Convertible Top Front Panel — original illustration 2, reference 1588Original colors & callouts · Select to enlarge

8. NOTE: Before tightening, make sure to properly align the bracket so that the headliner to back of front panel retainers are also aligned for the next step.

Source reference 1588
