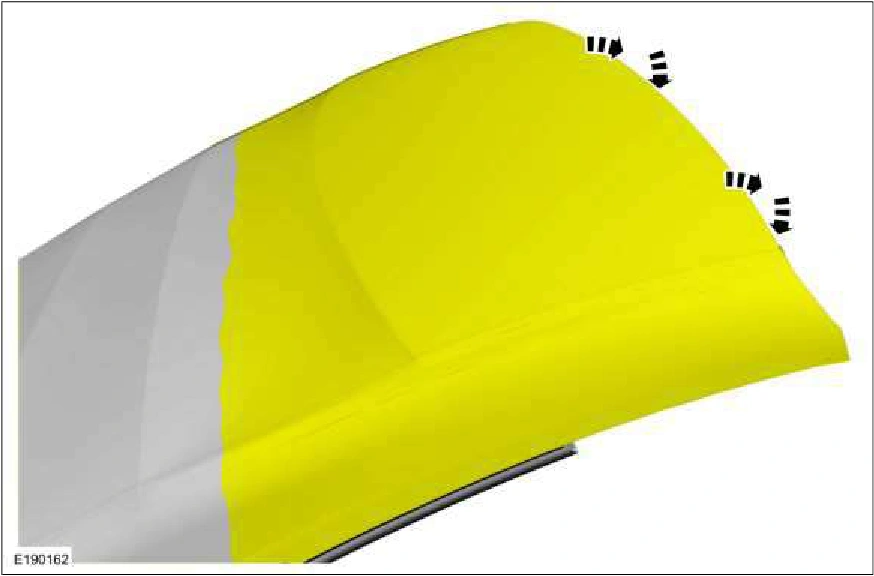

Convertible Top Front Panel — original illustration 1, reference 1587Original colors & callouts · Select to enlarge

5. Connect the convertible top material to the front underside of the convertible top front panel.

1. NOTE: RH side shown, LH side similar.

On both sides, apply double sided tape to the convertible top front panel as positioned when removed.

2. NOTE: Sub steps 2 and 3 can be performed together along the front of the convertible top front panel.

Roll the convertible top material down and rearward over the convertible top front panel.

3. Across the front, attach the convertible top material over the convertible top front panel clips.

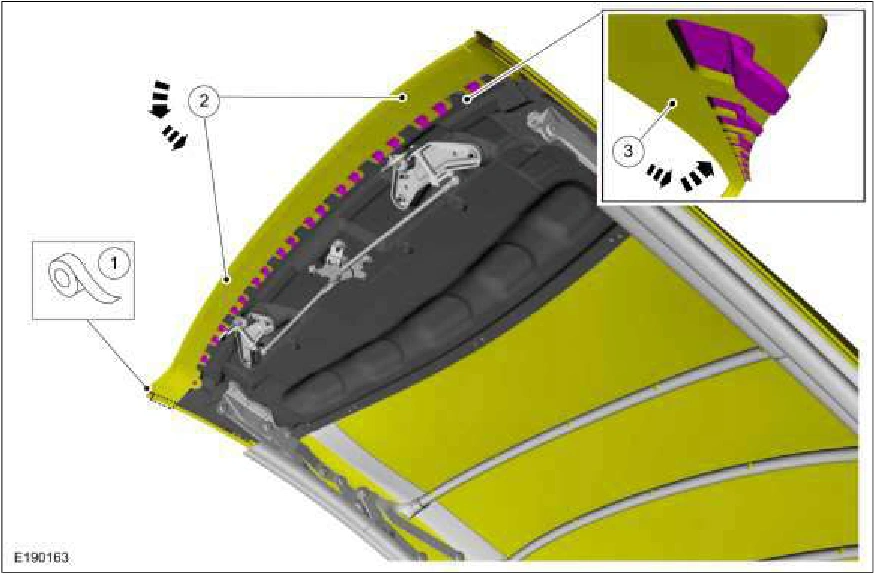

Convertible Top Front Panel — original illustration 2, reference 1587Original colors & callouts · Select to enlarge

6. Position the convertible top material and install the push pin retainers along the back of the convertible top
