Convertible Top Front Panel — 2016 workshop reference 1590

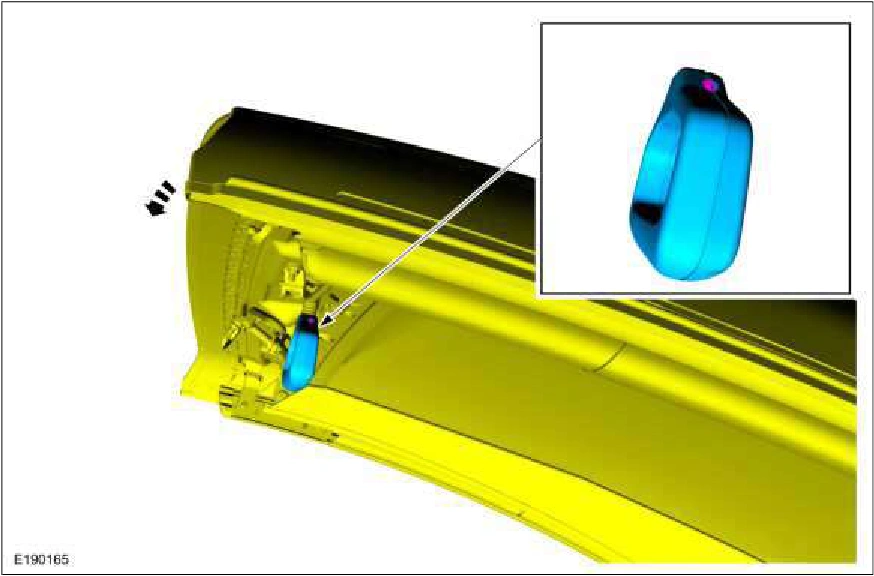

Convertible Top Front Panel — original illustration 1, reference 1590Original colors & callouts · Select to enlarge

11. Secure the convertible top in the closed position.

1. Pull down on the convertible top to position the latching mechanism properly.

2. Twist the latch handle counter clockwise to fully secure the convertible top.

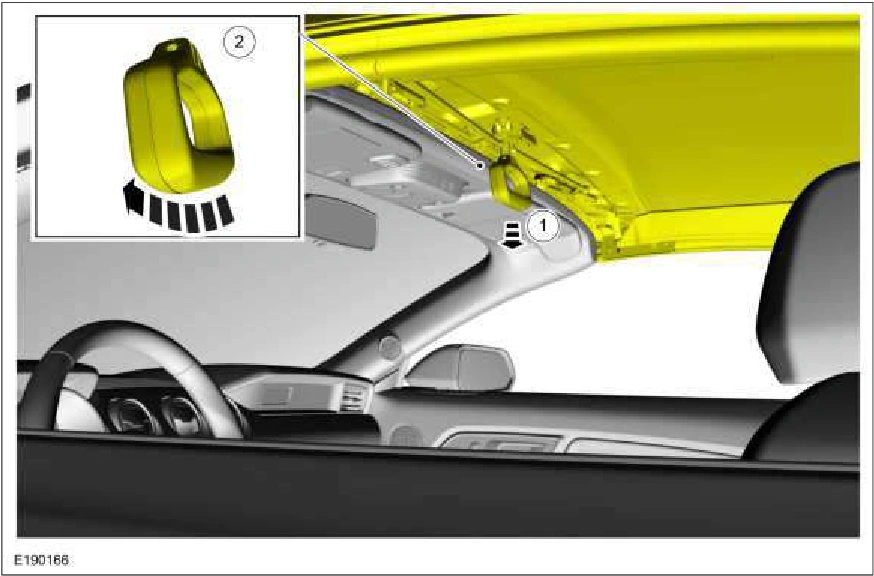

Convertible Top Front Panel — original illustration 2, reference 1590Original colors & callouts · Select to enlarge

12. NOTE: RH side shown, LH side similar.

On both sides. Tighten the convertible top front panel to frame bracket nuts. Torque : 106 lb.in (12 Nm)

Source reference 1590
