Convertible Top Front Panel — 2016 workshop reference 1591

Convertible Top Front Panel — original illustration 1, reference 1591Original colors & callouts · Select to enlarge

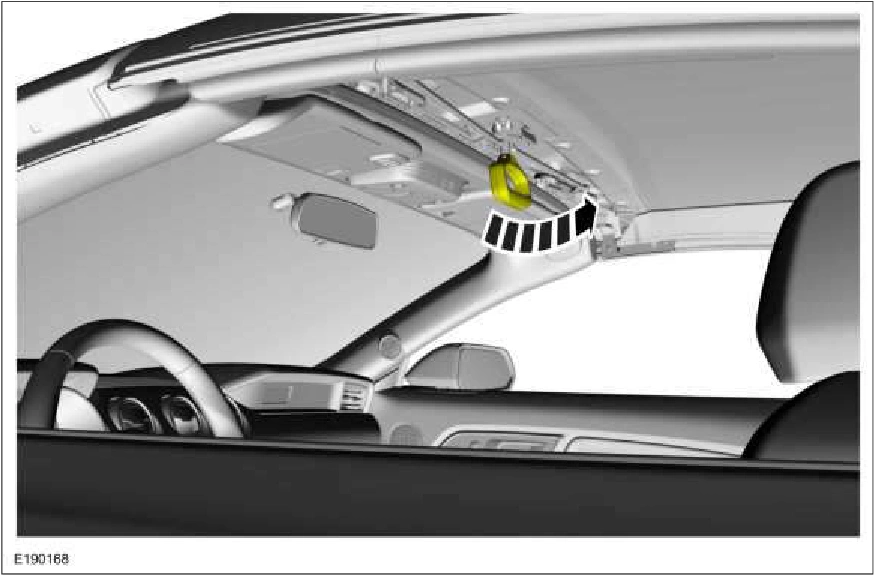

13. Twist the convertible top latch handle clockwise to release the convertible top.

Convertible Top Front Panel — original illustration 2, reference 1591Original colors & callouts · Select to enlarge

14. Open the convertible top approximately 25%.
