Convertible Top Front Panel — 2016 workshop reference 1583

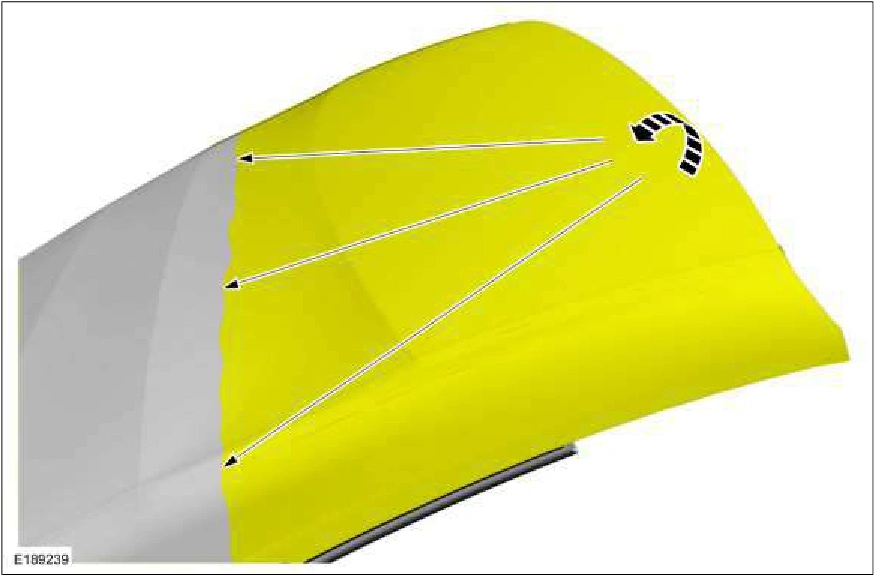

Convertible Top Front Panel — original illustration 1, reference 1583Original colors & callouts · Select to enlarge

11. NOTE: RH side shown, LH side similar.

On both sides. Disconnect the convertible top tension cable from the convertible top front panel.

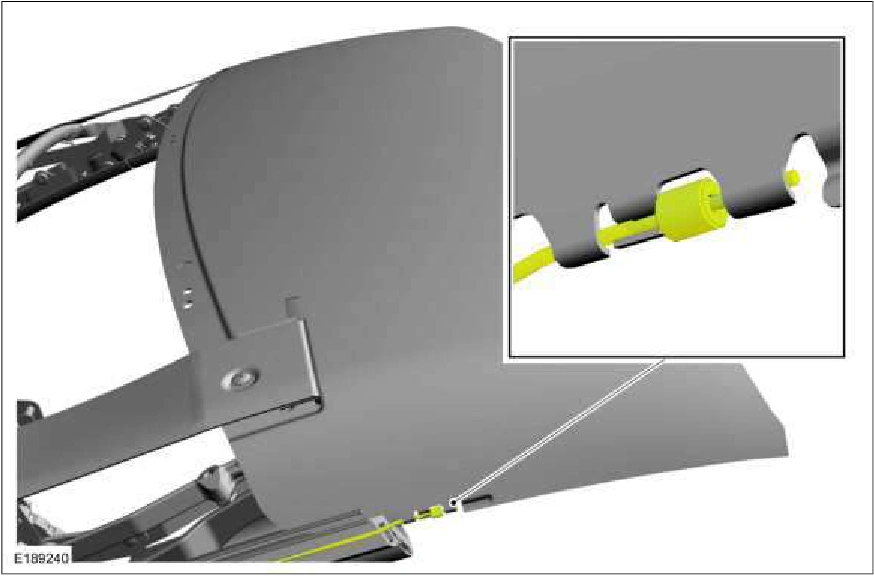

Convertible Top Front Panel — original illustration 2, reference 1583Original colors & callouts · Select to enlarge

12. NOTE: RH side shown, LH side similar.

On both sides. Disconnect the stay pad from the convertible top front panel.

1. NOTE: All rivet shavings must be removed from the vehicle and convertible top assembly.

Drill the stay pad rivets from the convertible top front panel. Use the General Equipment: Electric Drill
