Convertible Top Front Panel — 2016 workshop reference 1582

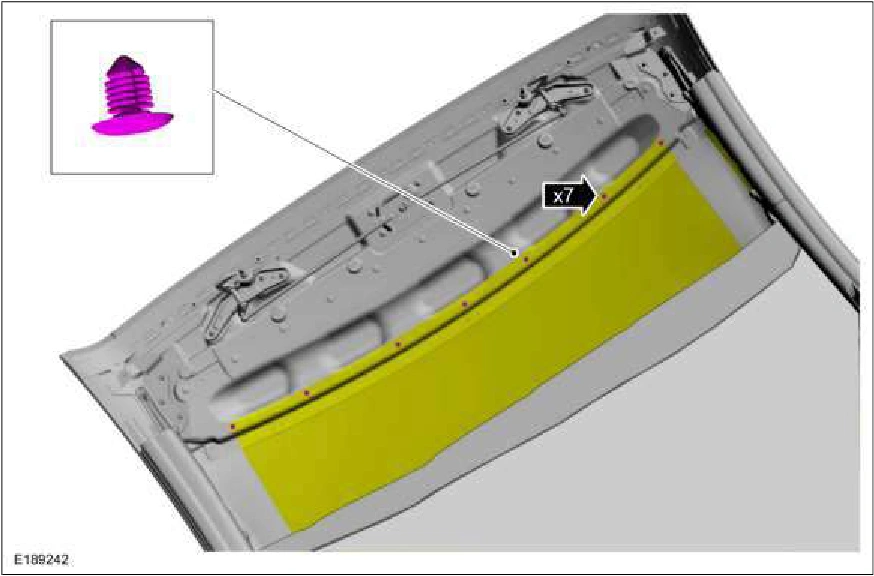

Convertible Top Front Panel — original illustration 1, reference 1582Original colors & callouts · Select to enlarge

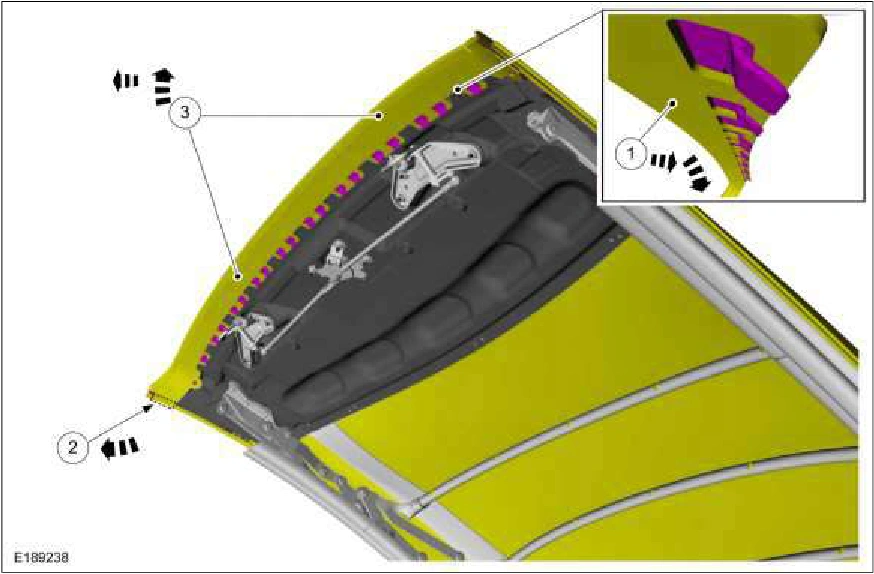

9. Disconnect the convertible top material from the front underside of the convertible top front panel.

1. Across the front, pull the convertible top material backward and down to release from the convertible top front panel clips.

2. NOTE: RH side shown, LH side similar.

On both sides, pull the convertible top material from the double sided tape securing the material to the convertible top front panel.

3. Roll the convertible top material forward and up over the convertible top front panel.

Convertible Top Front Panel — original illustration 2, reference 1582Original colors & callouts · Select to enlarge

10. Fold the front of the convertible top material back to the first crossbow to expose the convertible top tension cable end and stay pad rivets.
