Convertible Top Front Panel

501-18 Convertible Top

2016 MustangConvertibleReference 1,579 / 6,619HTML edition
← Chapter contentsProcedure contents

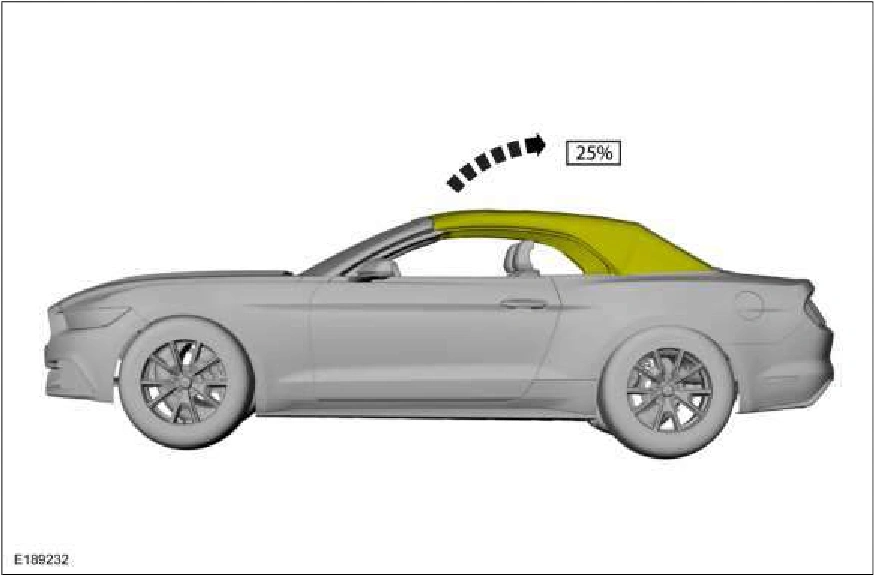

Convertible Top Front Panel — original illustration 1, reference 1579Original colors & callouts · Select to enlarge

3. Remove the convertible top latch handle.

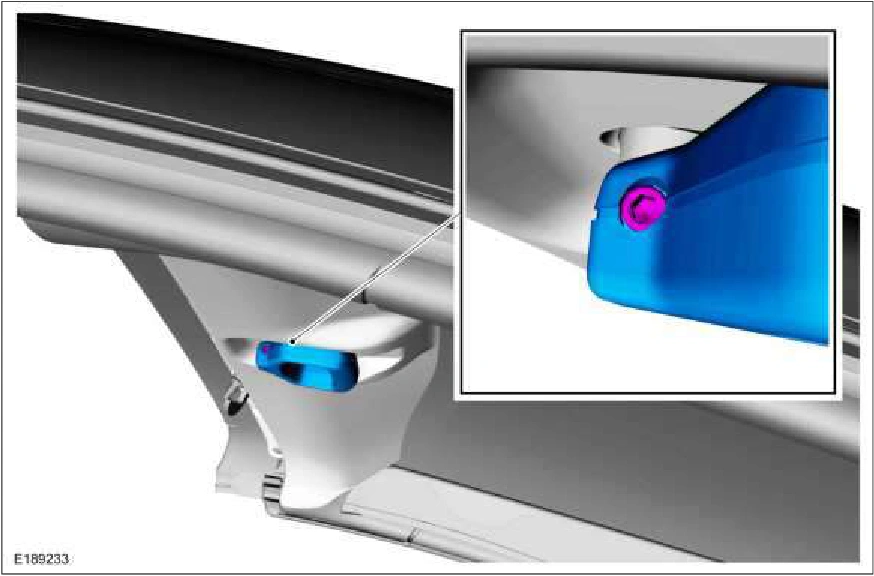

Convertible Top Front Panel — original illustration 2, reference 1579Original colors & callouts · Select to enlarge

4. Remove the convertible top front panel trim.

1. Remove the convertible top front panel trim retainers on the front of the trim.

2. Release the clips under the back of the convertible top front panel trim and remove the trim.

Source reference 1579
