Convertible Top Center Panel Side Weatherstrip — 2016 workshop reference 1576

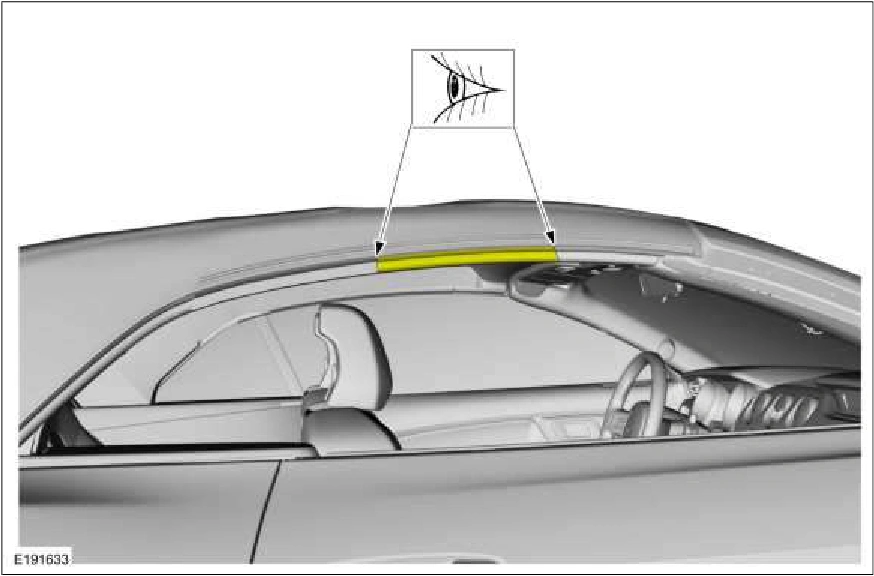

Convertible Top Center Panel Side Weatherstrip — original illustration 1, reference 1576Original colors & callouts · Select to enlarge

4. NOTE: Water test the convertible top to verify no water leak exists after repair.

Tighten the convertible top center panel side weatherstrip nuts. Torque : 62 lb.in (7 Nm)

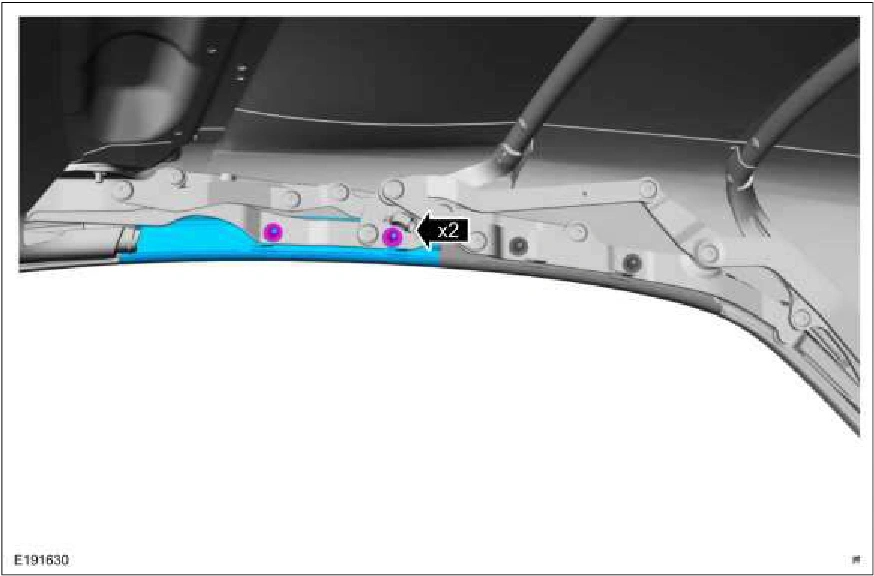

Convertible Top Center Panel Side Weatherstrip — original illustration 2, reference 1576Original colors & callouts · Select to enlarge

5. NOTE: RH side shown, LH side similar.

Install the convertible top center panel side weatherstrip trim.

Source reference 1576
