501-18 Convertible Top 2016 Mustang

Removal and Installation Procedure revision date: 01/13/2015

Convertible Top Center Panel Side Weatherstrip

Removal

NOTE: Procedure views are with the convertible top in the fully closed position showing tension on the convertible top material, actual position should be approximately 25-50 percent open allowing slack in the convertible top material and other components for serviceability.

This procedure can be used for any of the 4 convertible top center panel side weatherstrips.

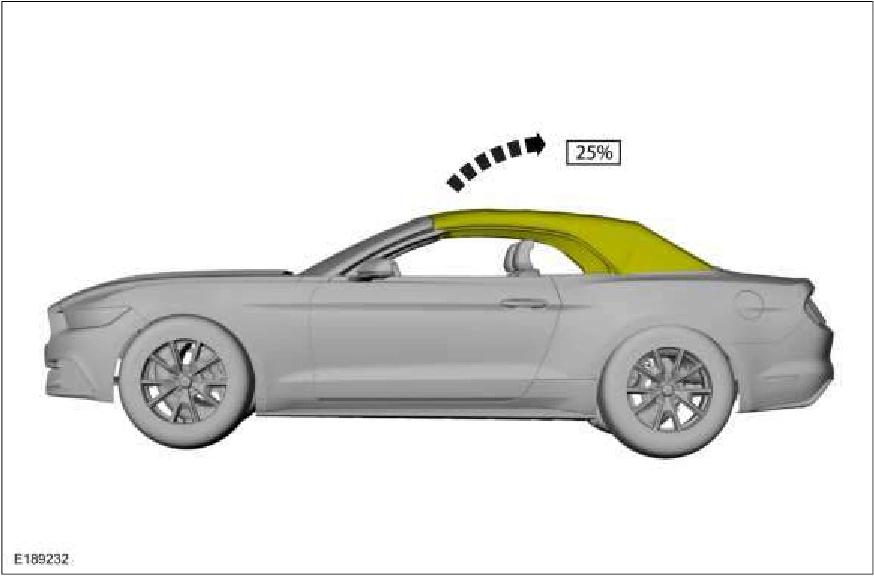

1. Open the convertible top approximately 25 percent.

Convertible Top Center Panel Side Weatherstrip — original illustration 1, reference 1573Original colors & callouts · Select to enlarge

2. NOTE: RH side shown, LH side similar.

Pull down to remove the convertible top center panel side weatherstrip trim.
