Convertible Top Assembly — 2016 workshop reference 1570

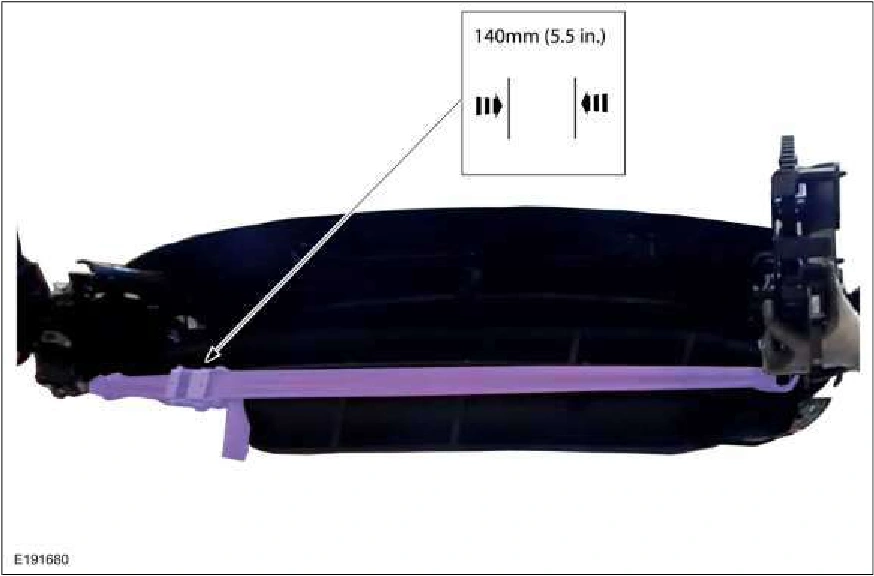

Convertible Top Assembly — original illustration 1, reference 1570Original colors & callouts · Select to enlarge

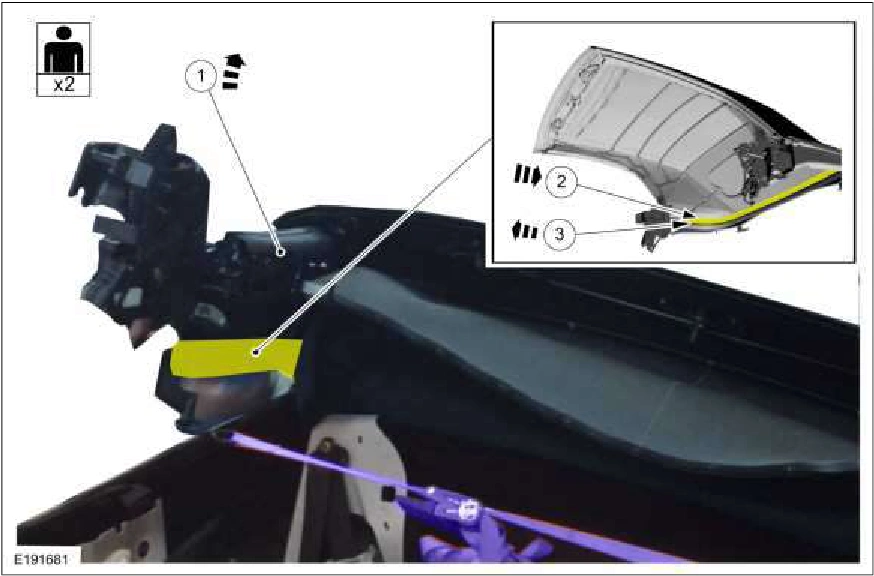

19. NOTE: The sub steps should be performed together as a single step.

With the help of an assistant, lift the RH side of the convertible top assembly above the vehicle body.

1. Lift the RH side of the convertible top assembly.

2. While the convertible top assembly is being raised, push the floating bow area of the convertible top assembly inward until the RH side of the convertible top assembly including the floating bow is fully above the vehicle body.

3. Pull the floating bow part of the convertible top assembly outward for clearance to lift out the convertible top assembly in the next step.

Convertible Top Assembly — original illustration 2, reference 1570Original colors & callouts · Select to enlarge

20. NOTE: This step and the next step should be performed together as a single step.

With the help of an assistant, move the convertible top assembly toward the RH side of the vehicle and lift the LHside above the vehicle body.
