Convertible Top Assembly

501-18 Convertible Top

2016 MustangConvertibleReference 1,569 / 6,619HTML edition
← Chapter contentsProcedure contents

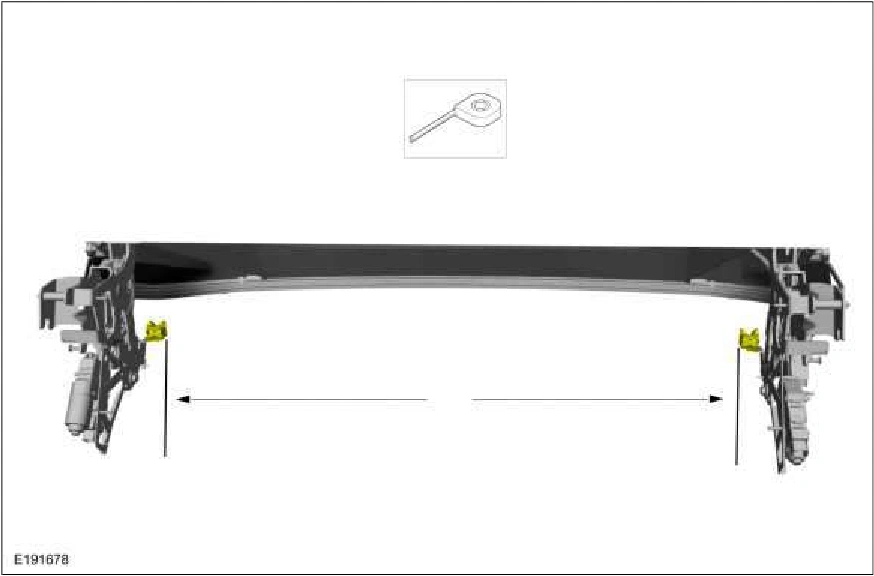

Convertible Top Assembly — original illustration 1, reference 1569Original colors & callouts · Select to enlarge

17. NOTE: LH side shown, RH side similar.

On both sides, attach a retaining strap to the bottom of both floating bowl brackets as shown.

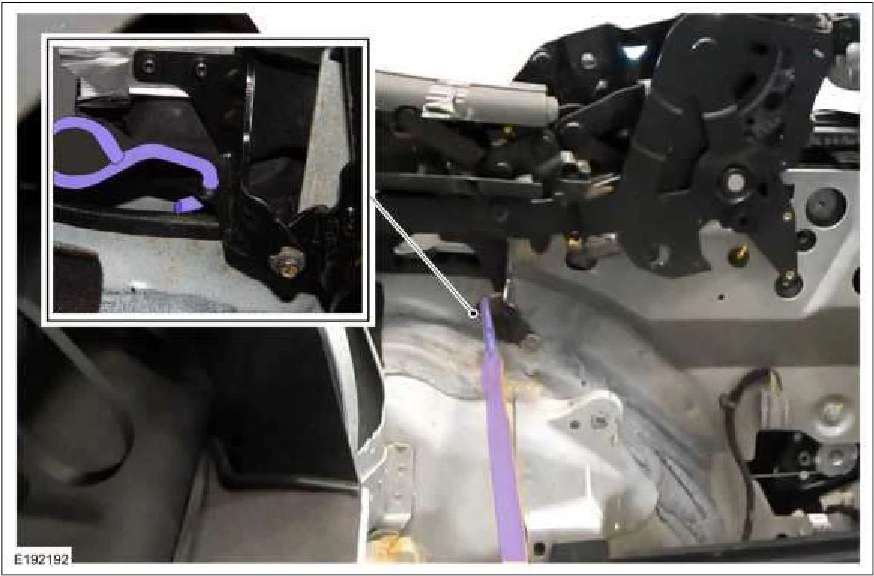

Convertible Top Assembly — original illustration 2, reference 1569Original colors & callouts · Select to enlarge

18. NOTICE: Reducing the distance between the floating bow brackets by more than 165 mm (6.5 in.)

may cause damage to the assembly.

Tighten the retaining strap so the measurement between the floating bow brackets is reduced by a maximum of 140 mm (5.5 in.).
