Convertible Top Assembly — 2016 workshop reference 1566

Convertible Top Assembly — original illustration 1, reference 1566Original colors & callouts · Select to enlarge

11. NOTE: RH side shown, LH side similar.

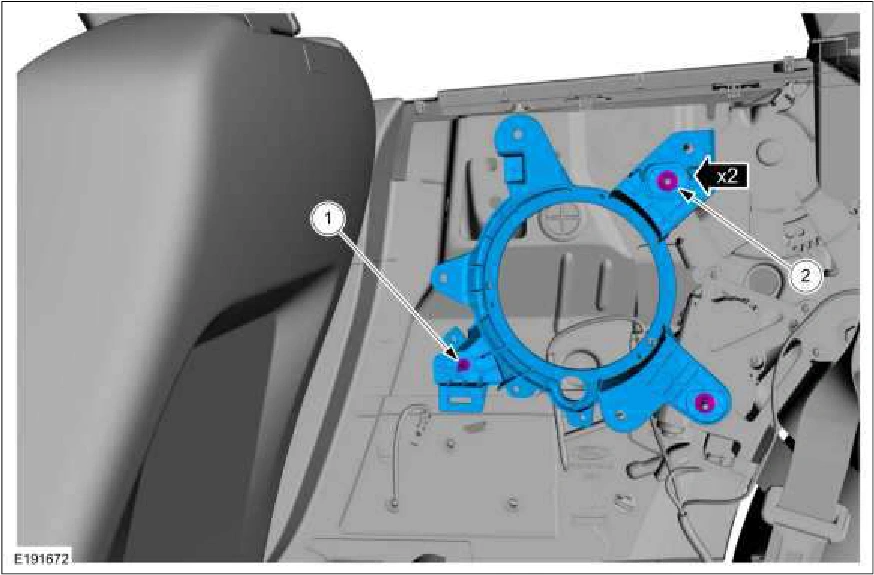

On both sides, remove the rear quarter panel speaker brackets.

1. On both sides, remove the speaker bracket stud. Torque : 93 lb.in (10.5 Nm)

2. On both sides, remove the speaker bracket nuts and the speaker bracket. Torque : 71 lb.in (8 Nm)

Convertible Top Assembly — original illustration 2, reference 1566Original colors & callouts · Select to enlarge

12. NOTE: RH side shown, LH side similar.

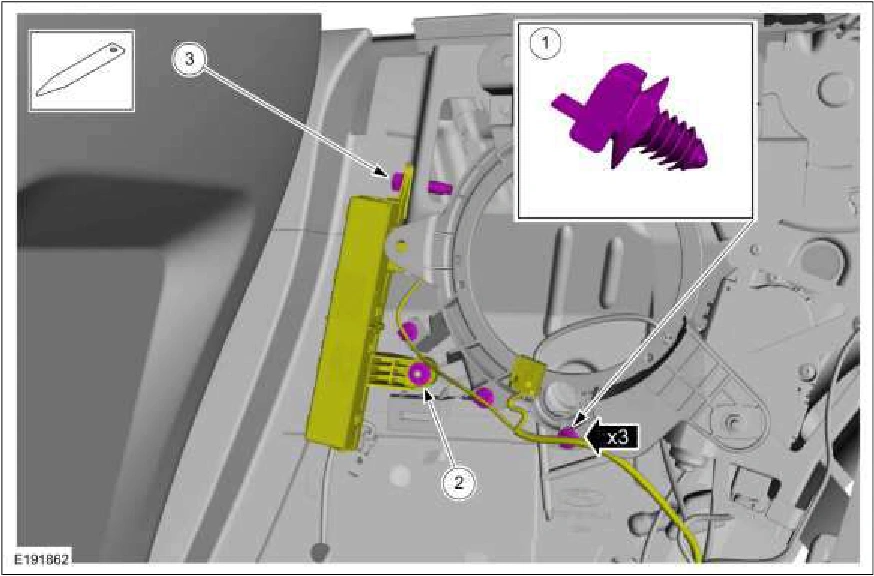

On both sides, disconnect the convertible top harness routing clip retainers and connectors and position aside.

Source reference 1566
