Convertible Top Assembly — 2016 workshop reference 1564

During installation, make sure to position all trough assembly flexible material and convertible top material in the exact location it was removed from.

On both sides, disconnect both trough hanging retainers (near the rear window belt moulding) from the body.

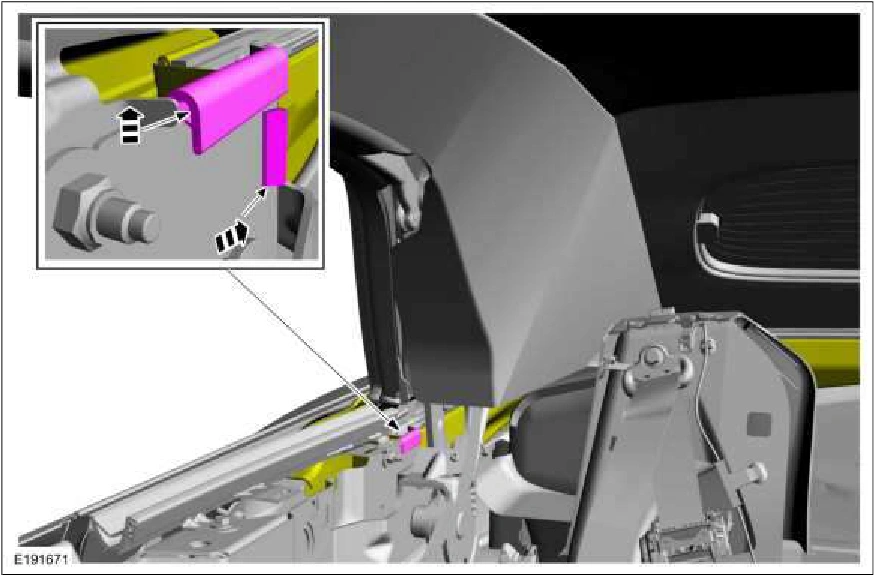

Convertible Top Assembly — original illustration 1, reference 1564Original colors & callouts · Select to enlarge

7. NOTE: RH side shown, LH side similar.

During installation, make sure to position all trough assembly flexible material and convertible top material in the exact location it was removed from.

On both sides, slide the water bag portion of the trough assembly out of the bracket and position aside.

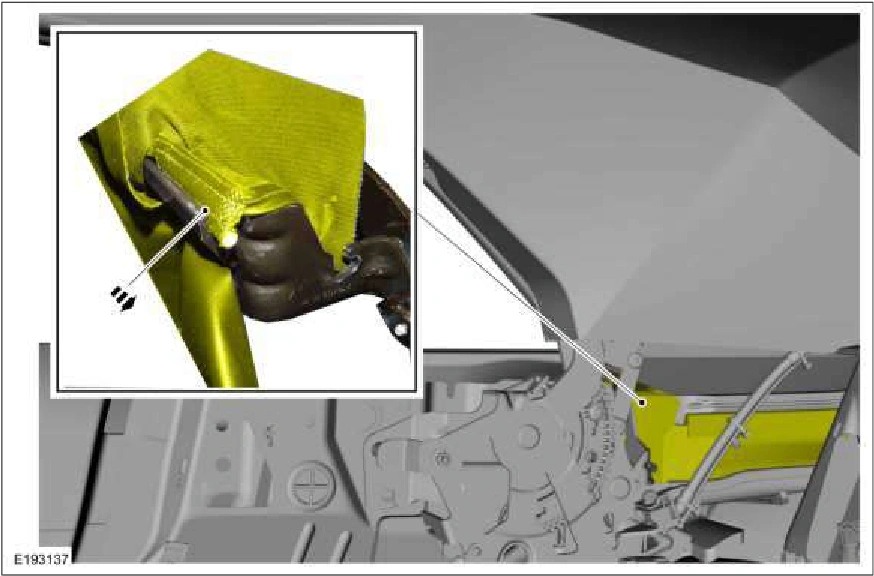

Convertible Top Assembly — original illustration 2, reference 1564Original colors & callouts · Select to enlarge

8. From inside the vehicle, disconnect the trough assembly from the convertible top assembly.

Source reference 1564
