Convertible Top Assembly

501-18 Convertible Top 2016 Mustang

Removal and Installation Procedure revision date: 10/2/2014

Removal

NOTICE: Make sure the body of the vehicle is fully covered with fender blankets or equivalent or damage to the finish may result.

NOTE: Removal steps in this procedure may contain installation details.

Many procedure views are with the convertible top in the fully closed position showing tension on the convertible top material.

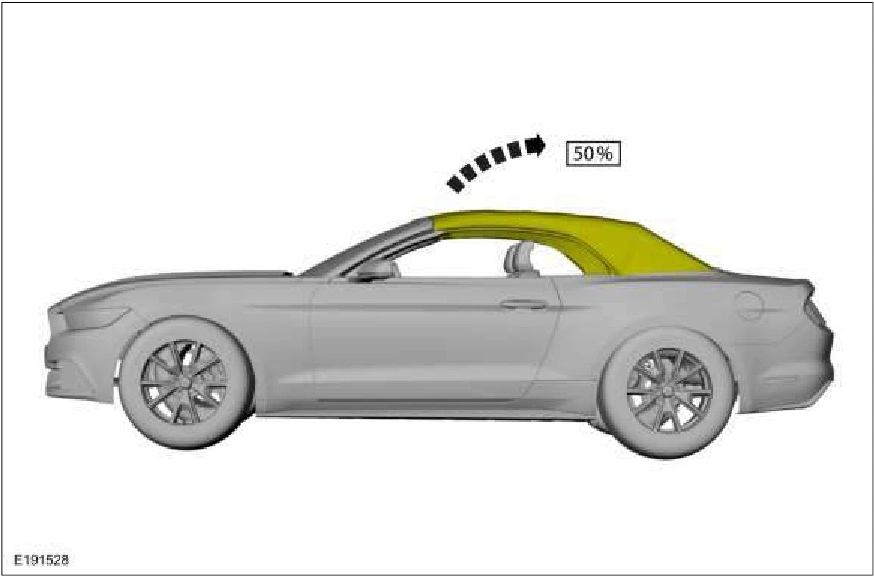

1. Open the convertible top approximately 50 percent.

Convertible Top Assembly — original illustration 1, reference 1562Original colors & callouts · Select to enlarge

2. NOTE: RH side shown, LH side similar.

From the luggage compartment on both sides, disconnect the convertible top tension belt adjuster bracket from body.

1. Push in on the rear of the convertible top tension belt adjuster to release the locking tabs.

2. Pull the rear of the convertible top tension belt adjuster down.
