Convertible Top Assembly

501-18 Convertible Top

2016 MustangConvertibleReference 1,565 / 6,619HTML edition
← Chapter contentsProcedure contents

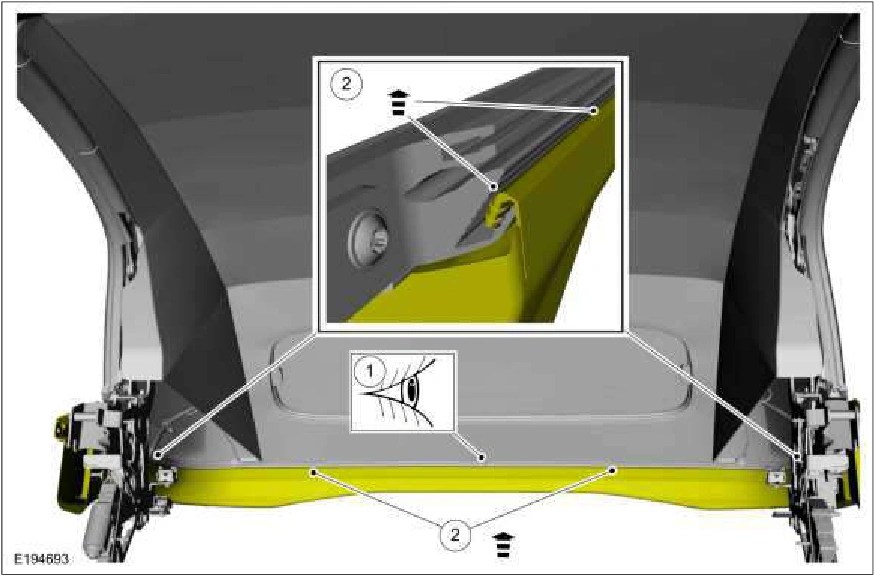

1. Locate the position of the notch on the floating bow and on the convertible top trough assembly for alignment reference during installation.

2. Pull the convertible top trough assembly up and out of the floating bow track along the back and the sides.

Convertible Top Assembly — original illustration 1, reference 1565Original colors & callouts · Select to enlarge

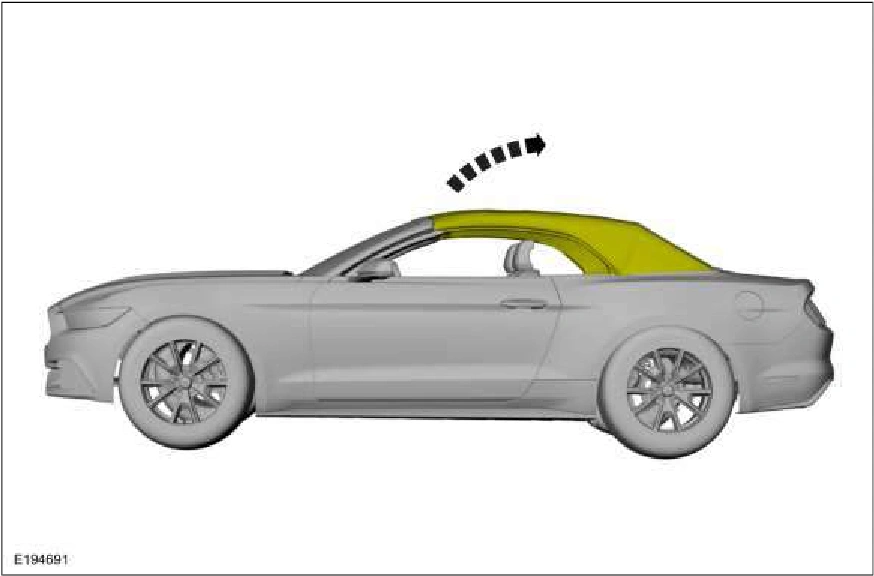

9. Fully open the convertible top.

Convertible Top Assembly — original illustration 2, reference 1565Original colors & callouts · Select to enlarge

10. On the RH side only, position aside the RTM and bracket assembly.

1. Disconnect the RTM wiring harness clips from the speaker bracket. Torque : 93 lb.in (10.5 Nm)

2. Remove the RTM bracket nut. Torque : 71 lb.in (8 Nm)

3. Remove the RTM bracket bolt and position the RTM and bracket assembly aside. Torque : 17 lb.in (1.9 Nm)

Source reference 1565
