2016 workshop · Body & Paint

Convertible Top Assembly

501-18 Convertible Top

2016 MustangConvertibleReference 1,567 / 6,619HTML edition
← Chapter contentsProcedure contents

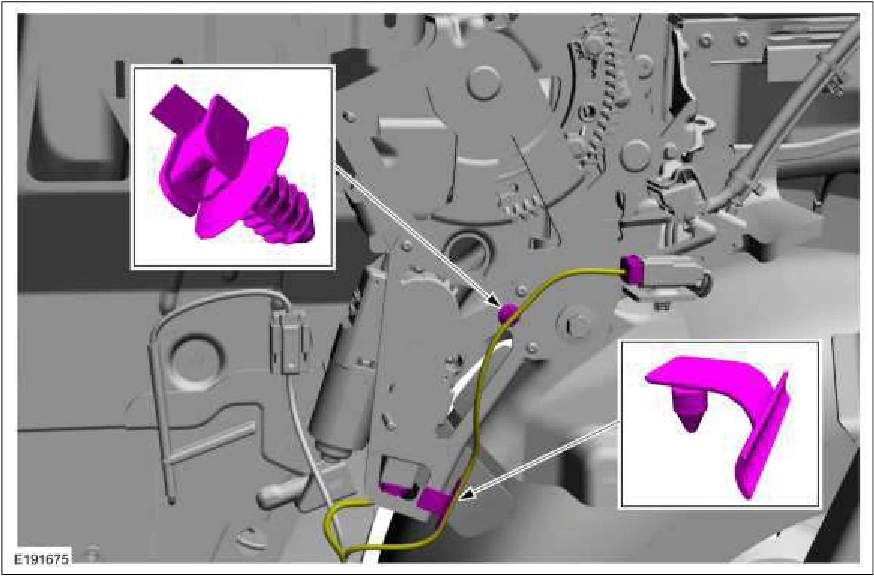

Convertible Top Assembly — original illustration 1, reference 1567Original colors & callouts · Select to enlarge

13. NOTE: RH side shown, LH side similar.

Loosen the bolts approximately 13 mm (1/2 in.) for clearance of the guide pins when removing the convertible top assembly.

On both sides, loosen the convertible top forward mounting bracket bolts. Torque : 35 lb.ft (48 Nm)

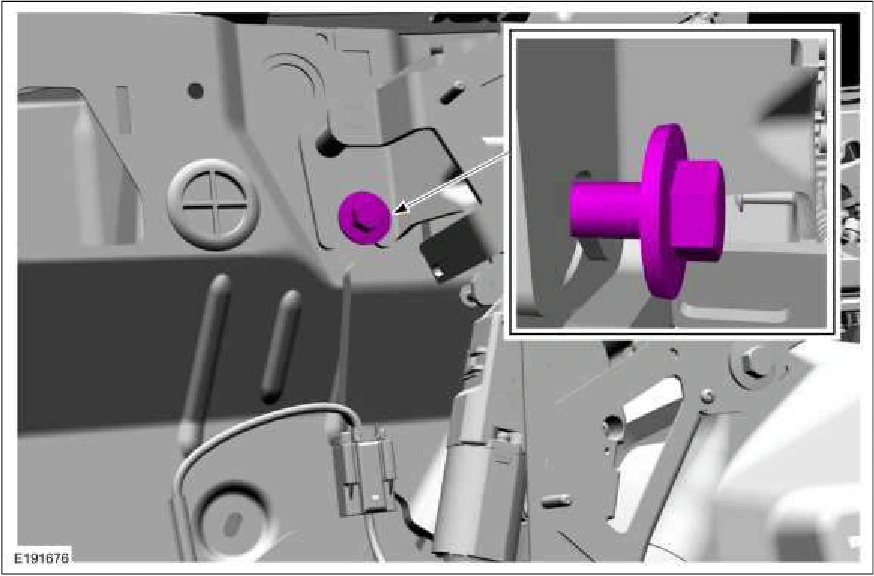

Convertible Top Assembly — original illustration 2, reference 1567Original colors & callouts · Select to enlarge

14. NOTE: LH side shown, RH side similar.

Remove the remaining convertible top assembly bolts.

1. NOTE: This bolt remains to assist positioning the convertible top assembly during installation.
