2016 workshop · Body & Paint

Convertible Top Assembly

501-18 Convertible Top

2016 MustangConvertibleReference 1,563 / 6,619HTML edition
← Chapter contentsProcedure contents

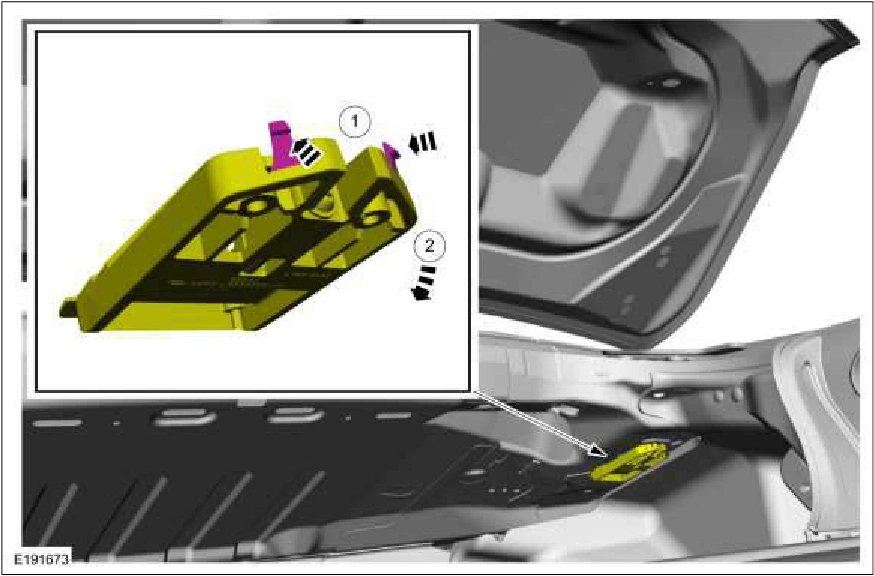

Convertible Top Assembly — original illustration 1, reference 1563Original colors & callouts · Select to enlarge

3. NOTE: RH side shown, LH side similar.

On both sides, push convertible top tension belt adjuster bracket through body to interior.

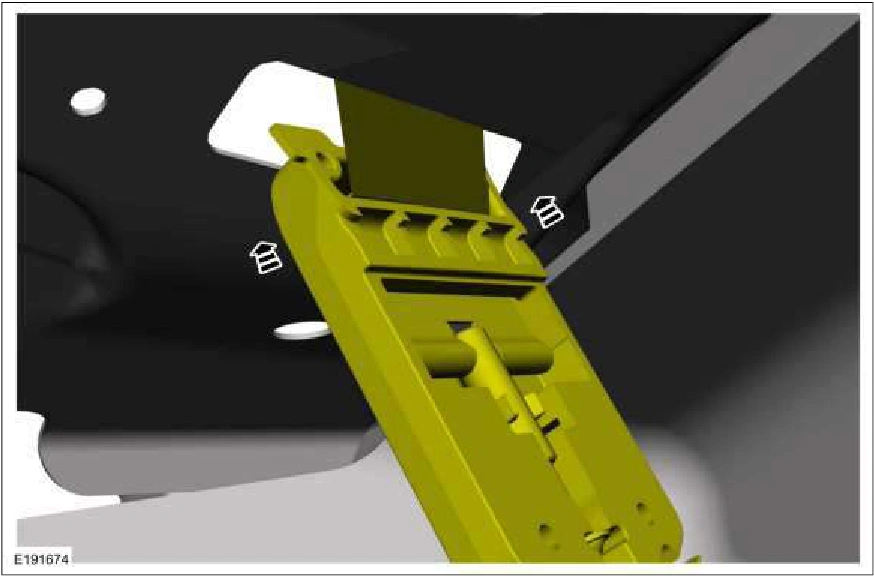

Convertible Top Assembly — original illustration 2, reference 1563Original colors & callouts · Select to enlarge

4. On both sides, remove the rear quarter panel speakers. Refer to: Rear Quarter Panel Speaker (415-00B Information and Entertainment System - General Information - Vehicles With: Touchscreen Display, Removal and Installation). Refer to: Rear Quarter Panel Speaker (415-00A Information and Entertainment System - General Information - Vehicles With: AM/FM/CD/SYNC, Removal and Installation).

5. Remove the parcel shelf. Refer to: Parcel Shelf - Convertible (501-05 Interior Trim and Ornamentation, Removal and Installation).

6. NOTE: RH side shown, LH side similar.
