Convertible Top Assembly — 2016 workshop reference 1571

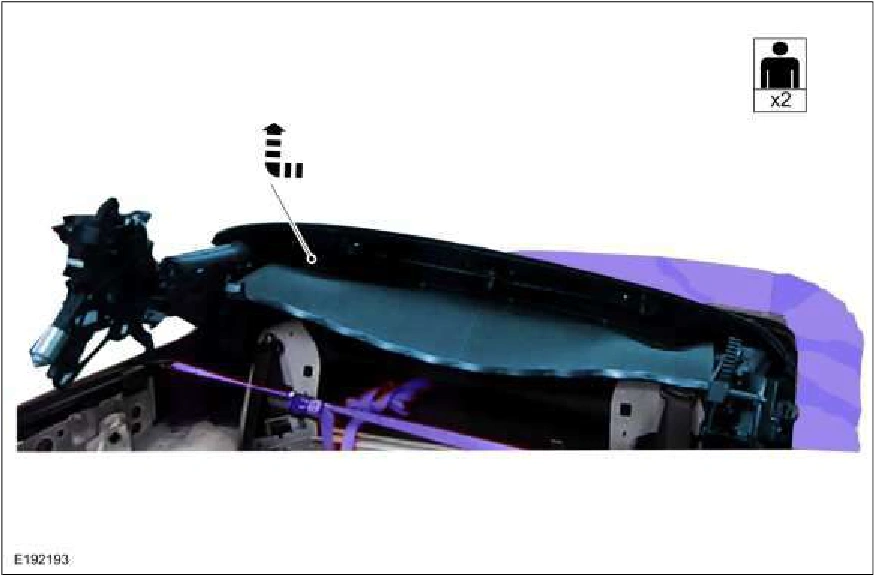

Convertible Top Assembly — original illustration 1, reference 1571Original colors & callouts · Select to enlarge

21. With the help of an assistant, carefully remove the convertible top assembly the rear of the vehicle to a suitable workbench.

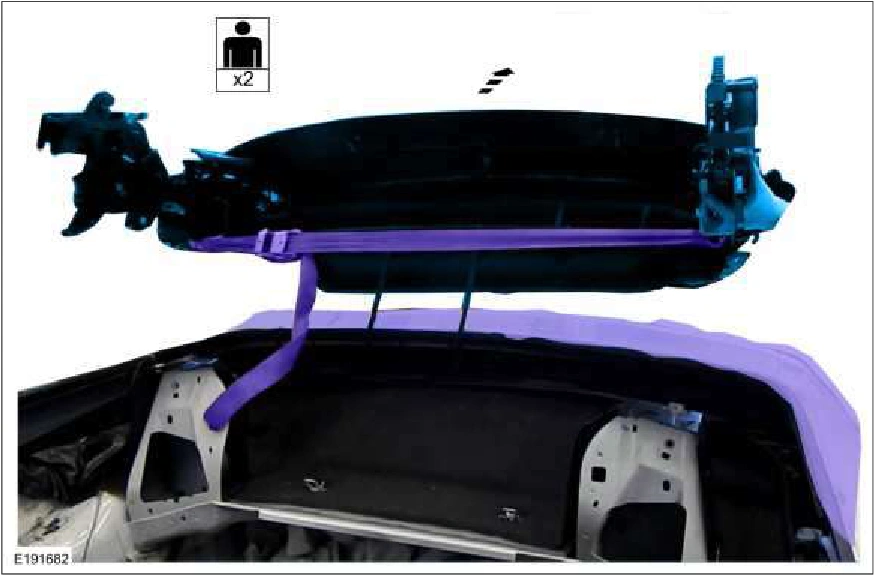

Convertible Top Assembly — original illustration 2, reference 1571Original colors & callouts · Select to enlarge

22. NOTE: If the convertible top assembly is being removed to service other convertible top components (not replacing the complete assembly) the motors must be removed to allow free convertible top position changes for access to remove components.

Skip this step if the complete convertible top assembly is being replaced.

If the convertible top assembly needs to be repositioned for access to other components when on the workbench, remove both convertible top motors. Refer to: Convertible Top Motor (501-18 Convertible Top, Removal and Installation).

Installation
