Convertible Top Center Panel Side Weatherstrip — 2016 workshop reference 1574

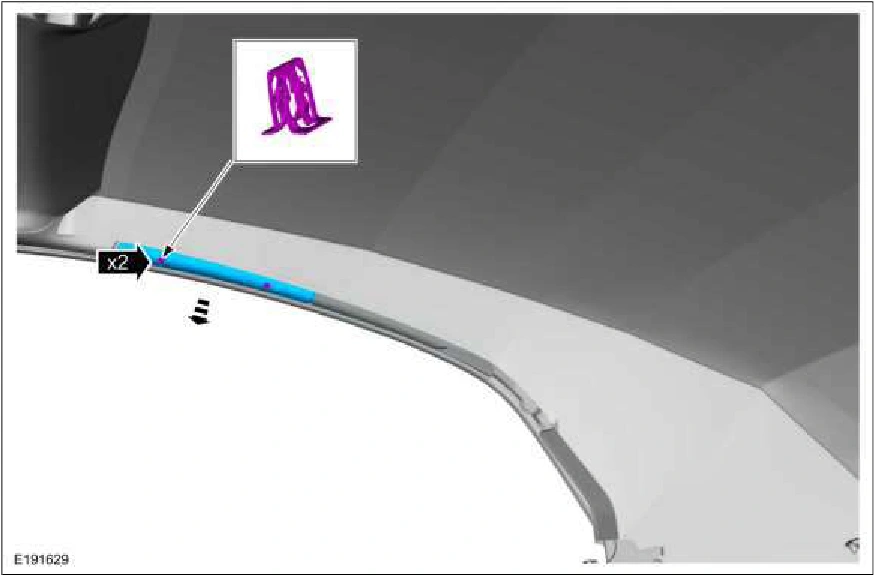

Convertible Top Center Panel Side Weatherstrip — original illustration 1, reference 1574Original colors & callouts · Select to enlarge

3. NOTE: RH side shown, LH side similar.

Convertible top headliner removed for clarity.

If any shims are present, note the position for installation.

Remove the convertible top center panel side weatherstrip nuts and the convertible top center panel side weatherstrip.

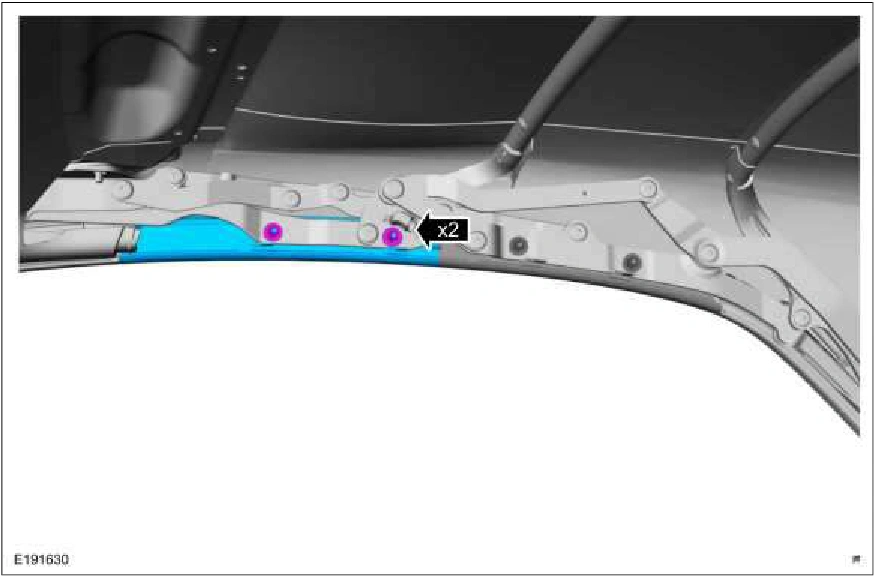

Convertible Top Center Panel Side Weatherstrip — original illustration 2, reference 1574Original colors & callouts · Select to enlarge

Installation

1. NOTE: RH side shown, LH side similar.

Convertible top headliner removed for clarity.

Source reference 1574
