Convertible Top Center Panel Side Weatherstrip — 2016 workshop reference 1575

Install with shim if removed with shim.

Loose install the convertible top center panel side weatherstrip.

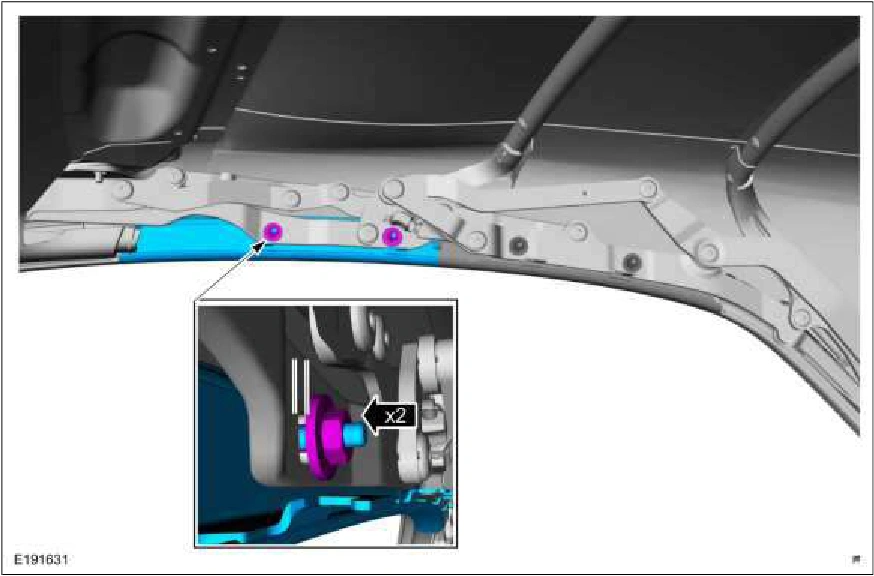

Convertible Top Center Panel Side Weatherstrip — original illustration 1, reference 1575Original colors & callouts · Select to enlarge

2. Close the convertible top.

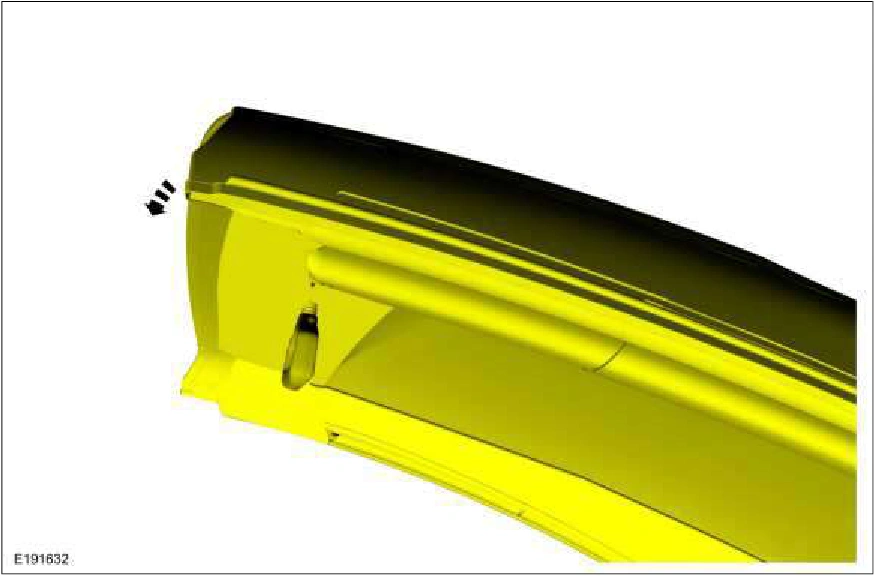

Convertible Top Center Panel Side Weatherstrip — original illustration 2, reference 1575Original colors & callouts · Select to enlarge

3. NOTE: RH side shown, LH side similar.

Check for correct alignment of the convertible top center panel side weatherstrip and wiggle to seat properly if needed.
