Convertible Top Front Panel

501-18 Convertible Top 2016 Mustang

Removal and Installation Procedure revision date: 01/13/2015

Special Tool(s) / General Equipment

Rivet Gun

Electric Drill

Removal

NOTE: Removal steps in this procedure may contain installation details.

Procedure views are with the convertible top in the fully closed position showing tension on the convertible top material, actual position should be approximately 25-50 percent open allowing slack in the convertible top material and other components for serviceability.

1. Release the convertible top.

1. Lower the convertible top latch handle.

2. Twist the convertible top latch handle clockwise to release the convertible top.

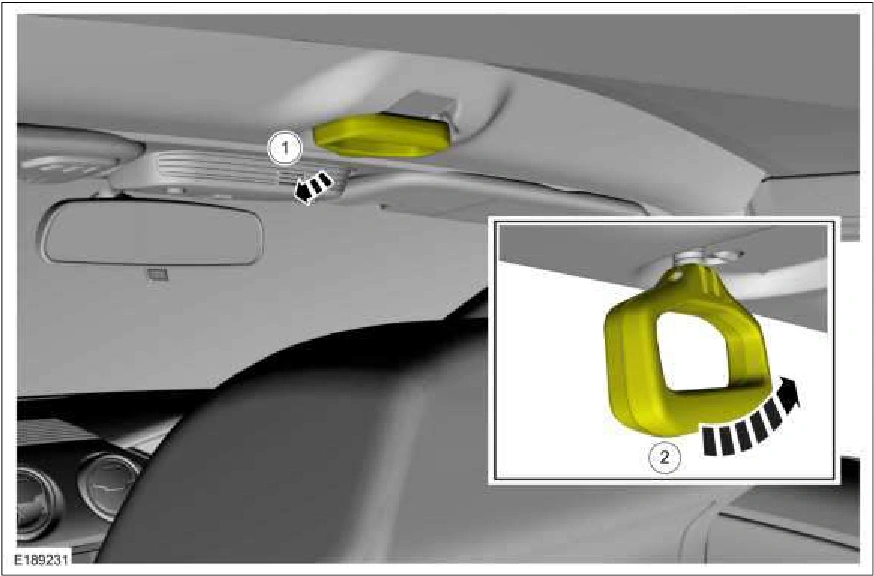

Convertible Top Front Panel — original illustration 1, reference 1578Original colors & callouts · Select to enlarge

2. Open the convertible top approximately 25 percent.

Source reference 1578
