Convertible Top Front Panel Side Weatherstrip — 2016 workshop reference 1598

Convertible Top Front Panel Side Weatherstrip — original illustration 1, reference 1598Original colors & callouts · Select to enlarge

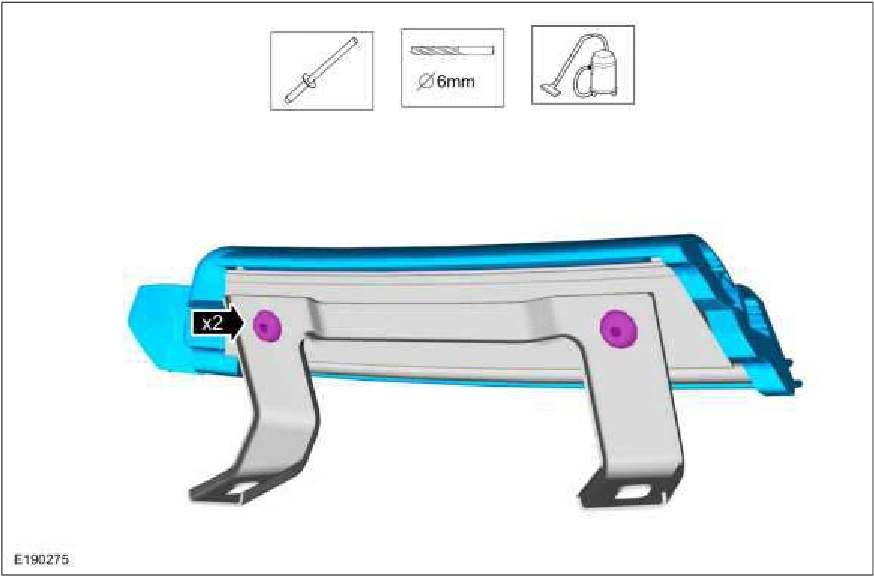

8. NOTE: All rivet shavings must be removed from the vehicle and convertible top assembly.

Make sure that the bracket does not bend when positioning in the bench vise or when drilling out the rivets.

With the convertible top front panel side weatherstrip and bracket assembly secured in a bench vise. Drill out the retaining rivets. Use the General Equipment: Vise Use the General Equipment: Electric Drill Use the General Equipment: Rivet Gun

Convertible Top Front Panel Side Weatherstrip — original illustration 2, reference 1598Original colors & callouts · Select to enlarge

Installation

1. To install, reverse the removal procedure.

Source reference 1598

2016 Mustang workshop publication supplied to Mustang Atlas. Original technical text and illustrations; HTML formatting by Mustang Atlas. Source page numbering is retained for traceability. Follow the configuration, revision, warnings, and cross-references in the material. About this edition.
