Convertible Top Front Striker

501-18 Convertible Top 2016 Mustang

Removal and Installation Procedure revision date: 01/13/2015

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Open the convertible top approximately 50 percent.

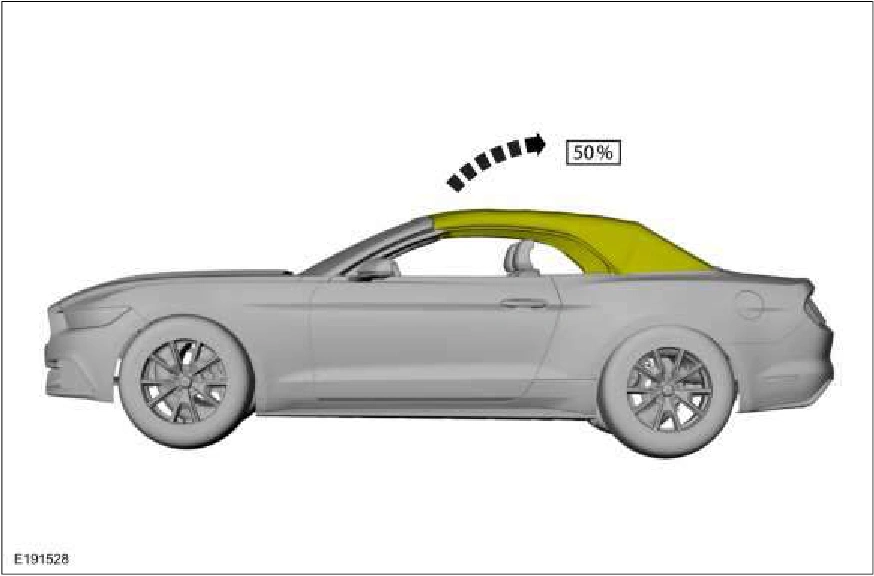

Convertible Top Front Striker — original illustration 1, reference 1600Original colors & callouts · Select to enlarge

2. On both sides, remove the A-pillar trim panels. Refer to: A-Pillar Trim Panel - Convertible (501-05 Interior Trim and Ornamentation, Removal and Installation).

3. NOTE: RH side shown, LH side similar.

On both sides. Remove the sun visors.

1. Remove the sun visor cap.

2. Release the clip.

3. Remove the sun visor.

4. If equipped. Disconnect the electrical connector.

Source reference 1600
