Convertible Top Front Striker — 2016 workshop reference 1603

1. On the LH side only. Disconnect the convertible top latch switch harness connector.

2. NOTE: The convertible top front striker reference marks must be used during installation for proper alignment.

Mark the convertible top front striker to header panel for installation reference.

3. Remove the convertible top front striker lower bolt. Torque : 133 lb.in (15 Nm)

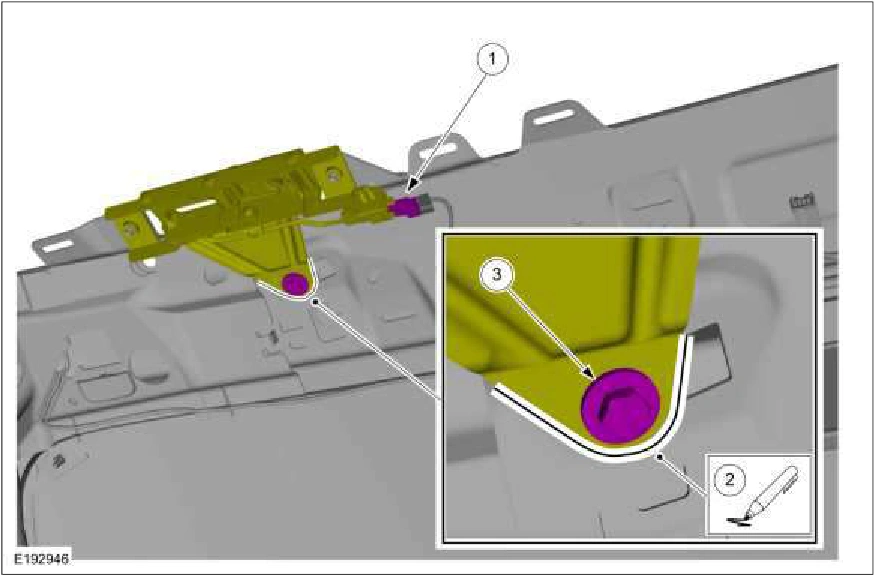

Convertible Top Front Striker — original illustration 1, reference 1603Original colors & callouts · Select to enlarge

8. NOTE: LH side shown, RH side similar.

Remove the convertible top front striker.

1. NOTE: The convertible top front striker retainer reference marks must be used during installation.

Mark the convertible top header panel around the retainers for installation reference.

2. Remove the convertible top front striker upper retainers and the striker. Torque : 93 lb.in (10.5 Nm)
