Convertible Top Front Striker — 2016 workshop reference 1602

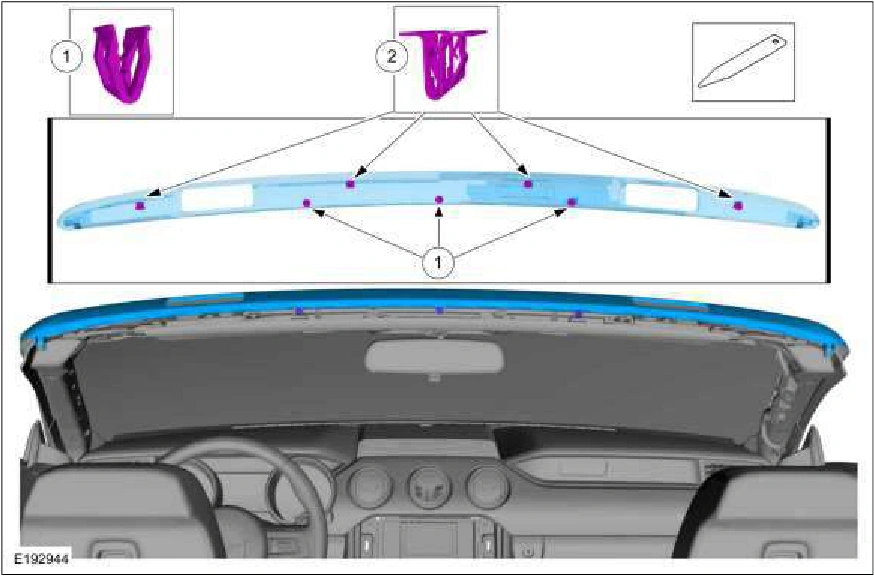

Convertible Top Front Striker — original illustration 1, reference 1602Original colors & callouts · Select to enlarge

6. NOTE: Wiring harness and overhead console removed for clarity.

Move the windshield header lower trim panel for access to the convertible top striker lower bolt.

1. Release the 6 windshield header lower trim panel clips from the windshield header.

2. NOTE: Disconnect the wiring harness as necessary for clearance.

Release the 2 windshield header lower trim panel clips (sun visor clips) from the windshield header and lower the windshield header lower trim panel.

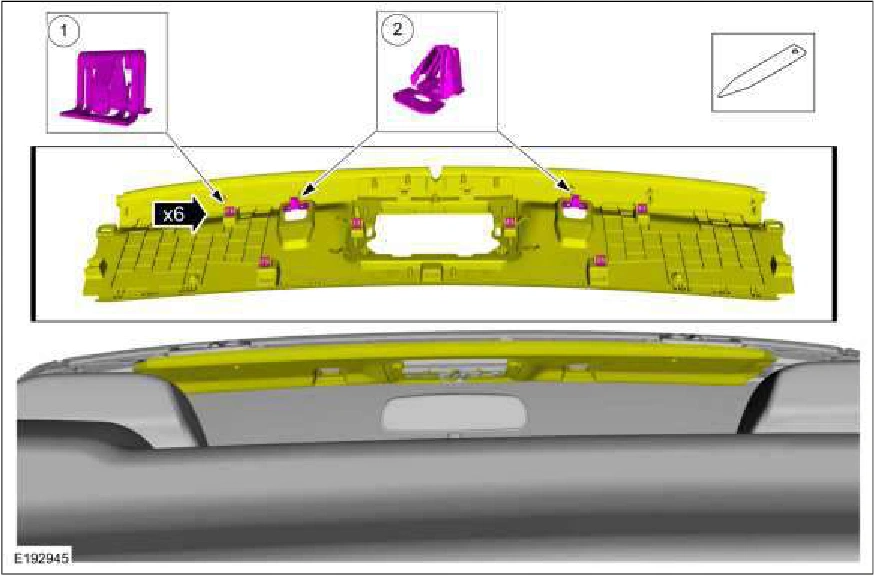

Convertible Top Front Striker — original illustration 2, reference 1602Original colors & callouts · Select to enlarge

7. NOTE: side shown, RH side similar.

Remove the convertible top front striker lower bolt and on the LH side, disconnect the harness connector .
