Convertible Top Front Striker — 2016 workshop reference 1601

Convertible Top Front Striker — original illustration 1, reference 1601Original colors & callouts · Select to enlarge

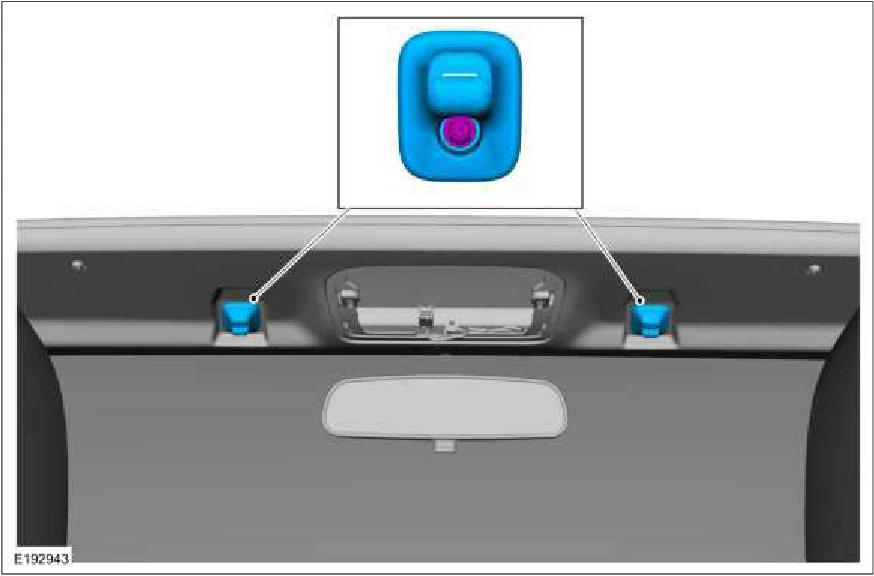

4. Remove the sun visor latch clips.

Convertible Top Front Striker — original illustration 2, reference 1601Original colors & callouts · Select to enlarge

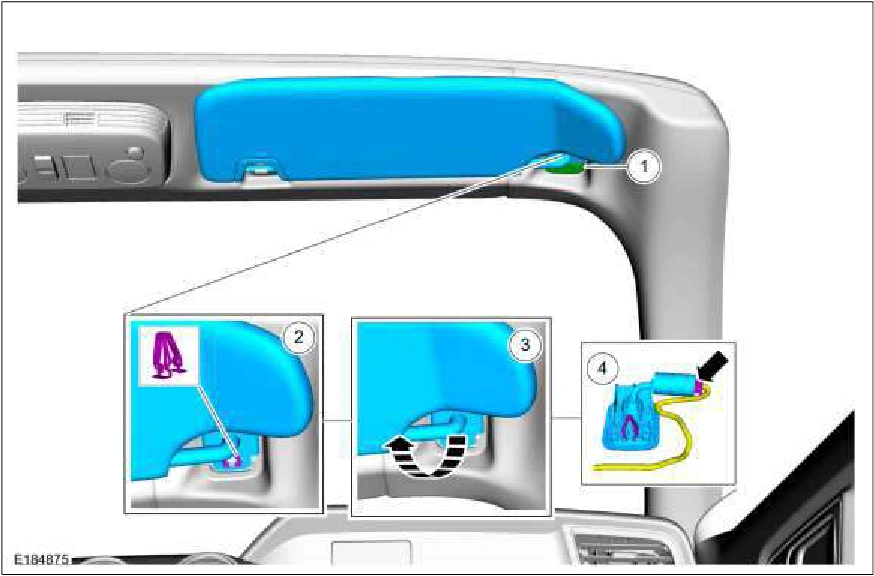

5. Remove the windshield header upper trim panel.

1. Release the 3 windshield header upper trim panel clips from the lower trim panel.

2. Release the 4 windshield header upper trim panel clips from the windshield header and remove the upper header trim panel.
