Symbols Glossary

100-00 General Information 2016 Mustang

Description and Operation Procedure revision date: 12/22/2014

Symbols are used inside the graphics and in the text area to enhance the information display.

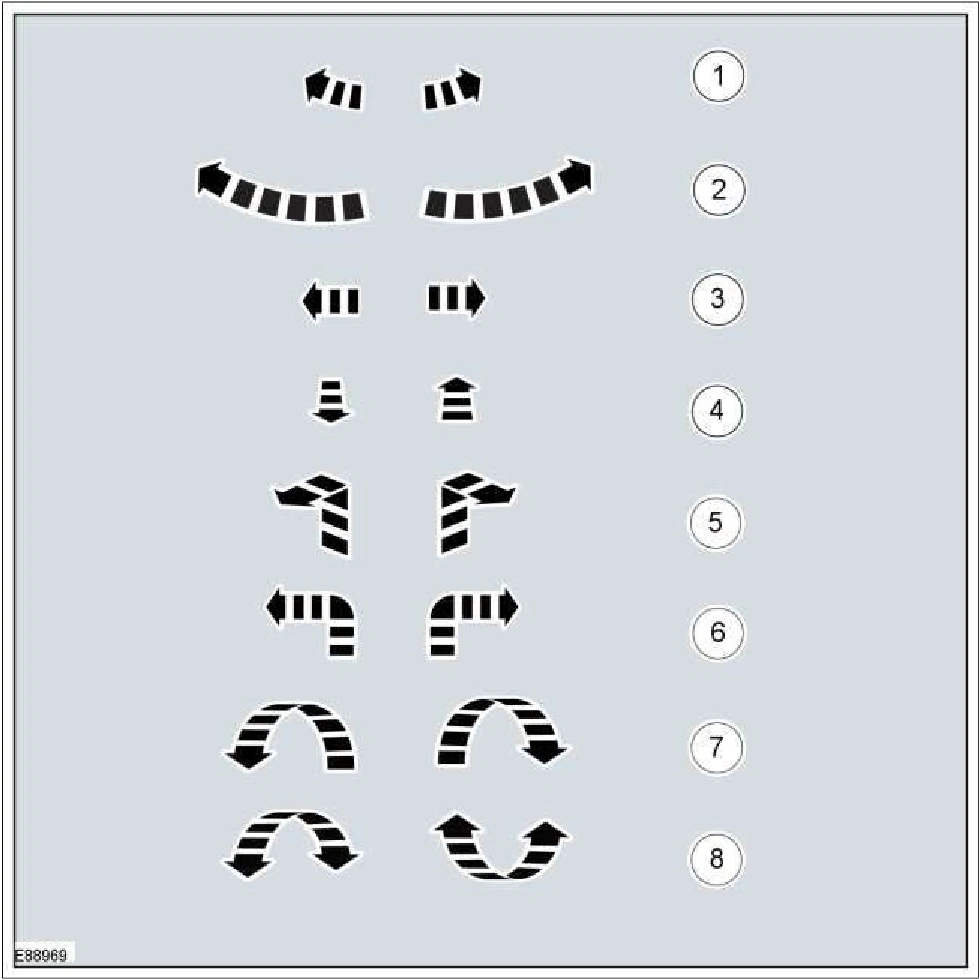

Movement Symbols

Movement symbols provide detailed information to a required component movement. These component movements can be rotational or 1-3 dimensional movements.

Symbols Glossary — original illustration 1, reference 16Original colors & callouts · Select to enlarge

	Item Part Number	Description
1	—	Minor component movement clockwise/counterclockwise
2	—	Major component movement clockwise/counterclockwise
3	—	Component movement to the left/right/up/down
4	—	Component movement towards/away

Source reference 16
