5 | — | 3 dimensional component movement |
6 | — | 2 dimensional component movement |
7 | — | 3 dimensional component rotation |
8 | — | 3 dimensional component cycling |

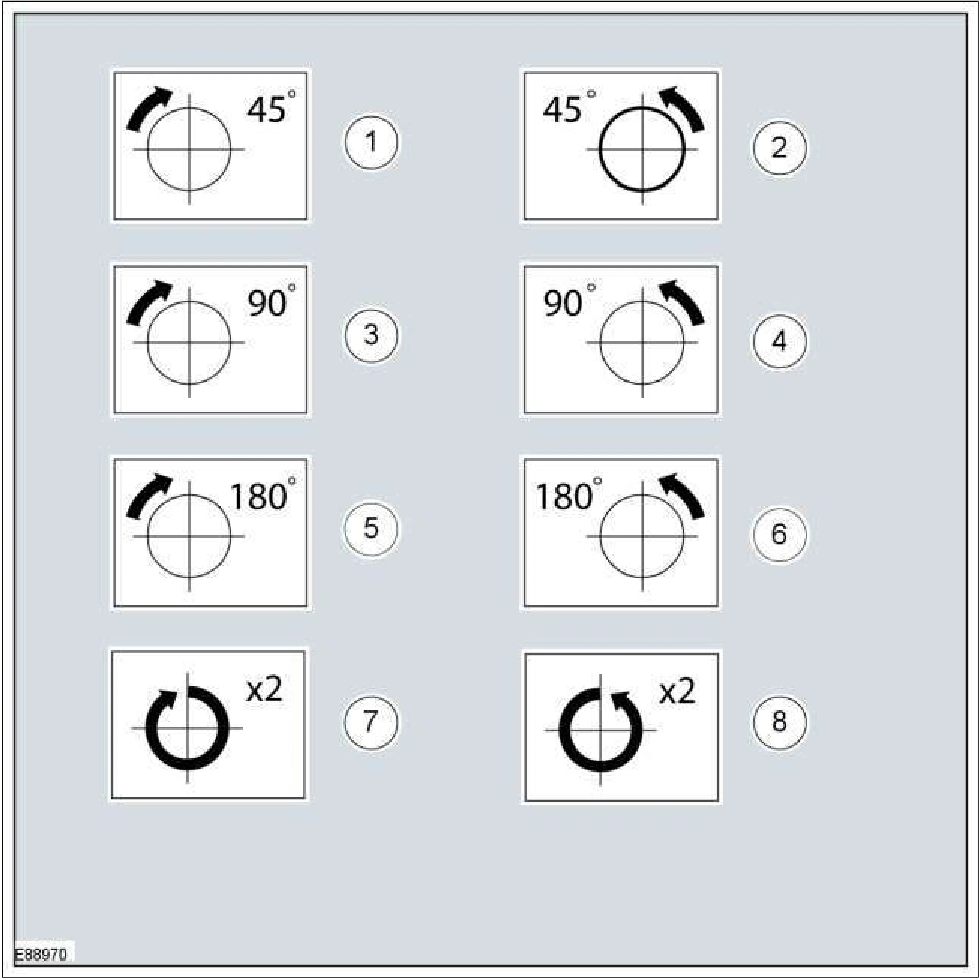

Turn Symbols
Turn symbols are used to provide further information on the direction or angle of component turns.
Item | Part Number | Description |
|---|---|---|
1 | — | Turn the component clockwise through 45° |
2 | — | Turn the component counterclockwise through 45° |
3 | — | Turn the component clockwise through 90° |
4 | — | Turn the component counterclockwise through 90° |
5 | — | Turn the component clockwise through 180° |
