2016 workshop · Service Information

Symbols Glossary

100-00 General Information

2016 MustangReference 18 / 6,619HTML edition
← Chapter contentsProcedure contents

6

—

Turn the component counterclockwise through 180°

7

—

Turn the component clockwise through 2 complete turns

8

—

Turn the component counterclockwise through 2 complete turns

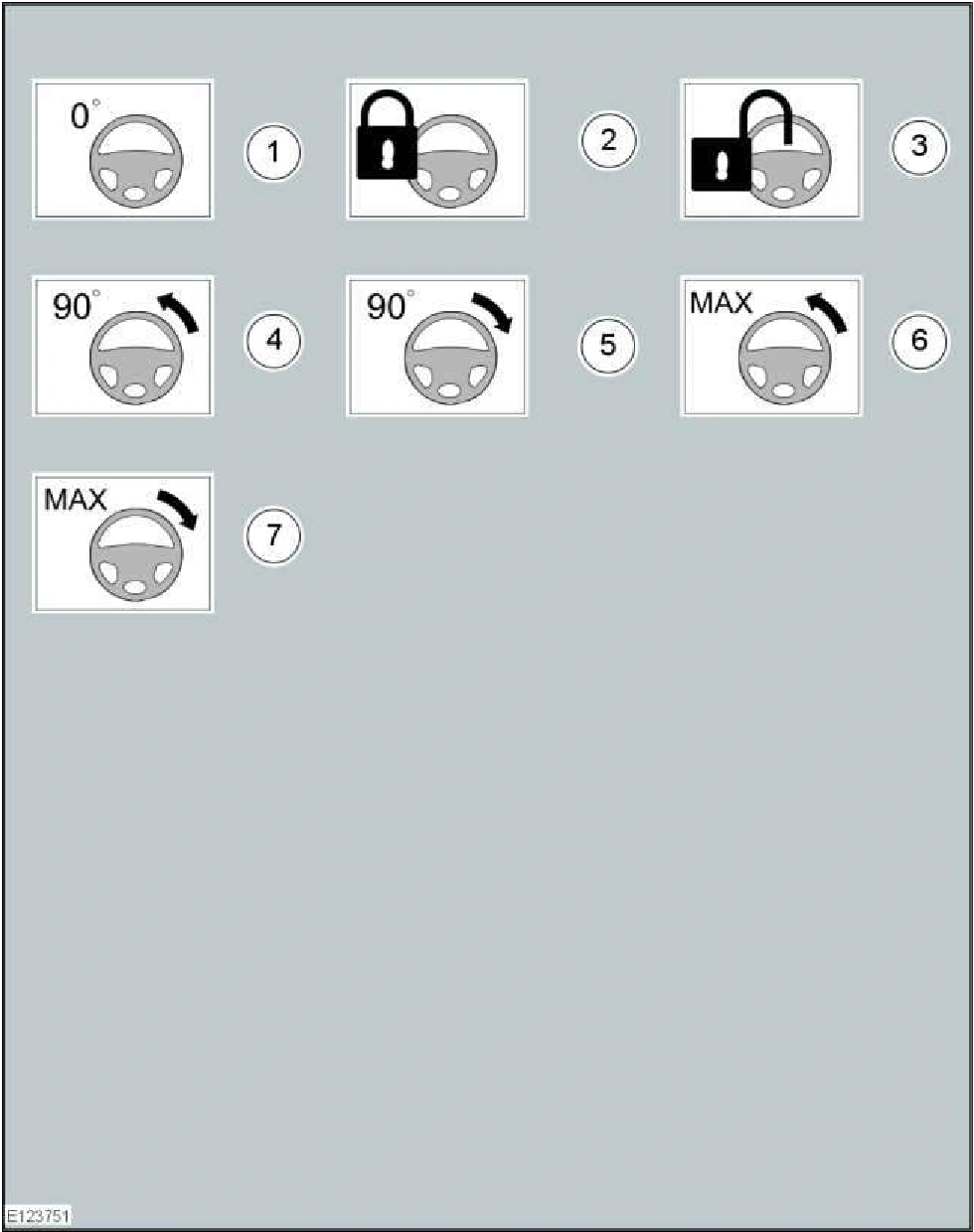

Steering Wheel Symbols

Steering wheel symbols are used to provide further information to a required steering wheel position or steering column lock status.

Symbols Glossary — original illustration 1, reference 18Original colors & callouts · Select to enlarge
