501-19 Bumpers 2016 Mustang

Removal and Installation Procedure revision date: 08/12/2015

Front Bumper

Base Part Number: 17757

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. Remove the front bumper cover. Refer to: Front Bumper Cover (501-19 Bumpers, Removal and Installation).

2. Position aside the ambient air temperature sensor bracket and wiring harness guide.

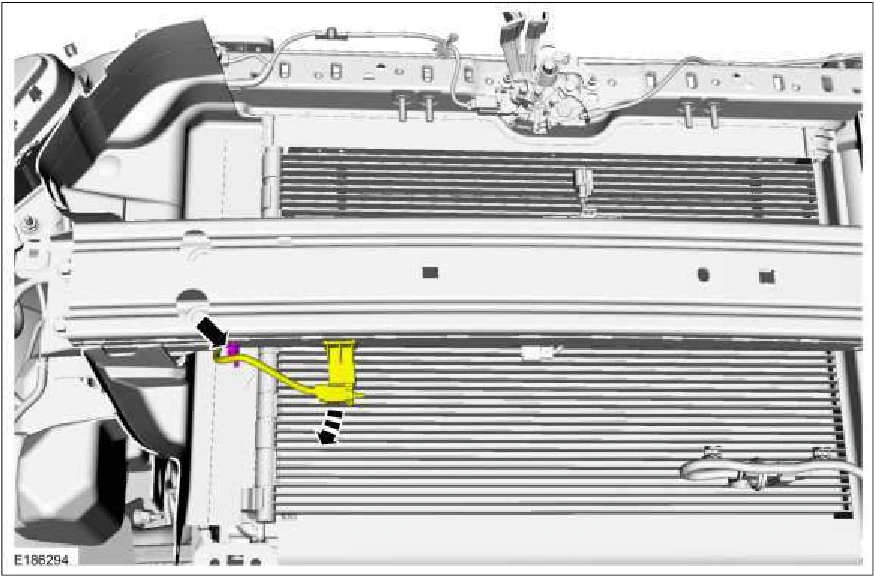

Front Bumper — original illustration 1, reference 1655Original colors & callouts · Select to enlarge

3. If equipped, remove the active grille shutter assembly. Refer to: Active Grille Shutter (501-02 Front End Body Panels, Removal and Installation).

4. If equipped, remove the CCM and bracket. Refer to: Cruise Control Module (CCM) (419-03B Cruise Control - Vehicles With: Adaptive Cruise Control, Removal and Installation).

5. Separate the wiring harness guides.

Source reference 1655
