Front Bumper - Vehicles With: SVT Performance Package — 2016 workshop reference 1657

501-19 Bumpers 2016 Mustang

Removal and Installation Procedure revision date: 08/12/2015

Front Bumper - Vehicles With: SVT Performance Package

Base Part Number: 17757

Removal

1. Remove the front bumper cover. Refer to: Front Bumper Cover - Vehicles With: SVT Performance Package (501-19 Bumpers, Removal and Installation).

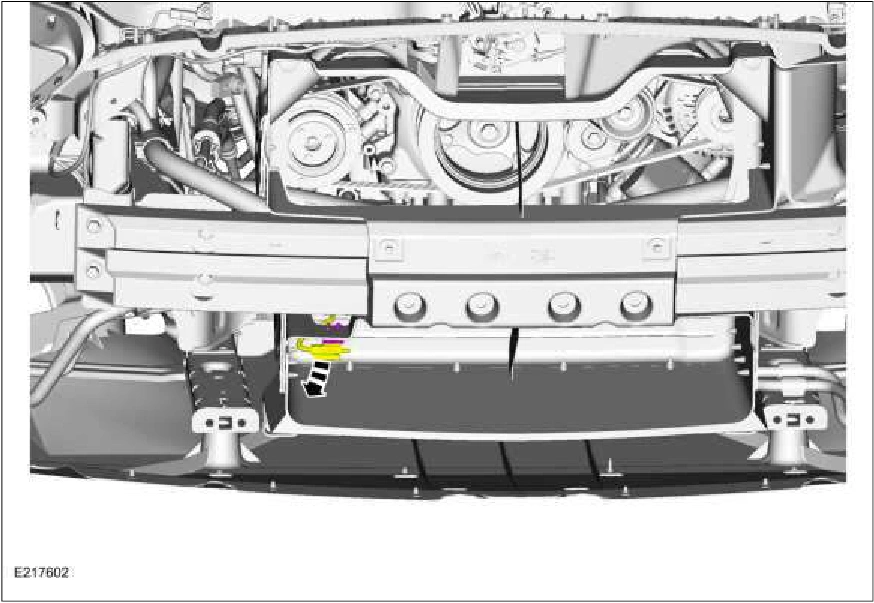

2. Position aside the ambient air temperature sensor bracket.

Front Bumper - Vehicles With: SVT Performance Package — original illustration 1, reference 1657Original colors & callouts · Select to enlarge

3. Remove the push pins.
