Front Bumper - Vehicles With: SVT Performance Package — 2016 workshop reference 1658

Front Bumper - Vehicles With: SVT Performance Package — original illustration 1, reference 1658Original colors & callouts · Select to enlarge

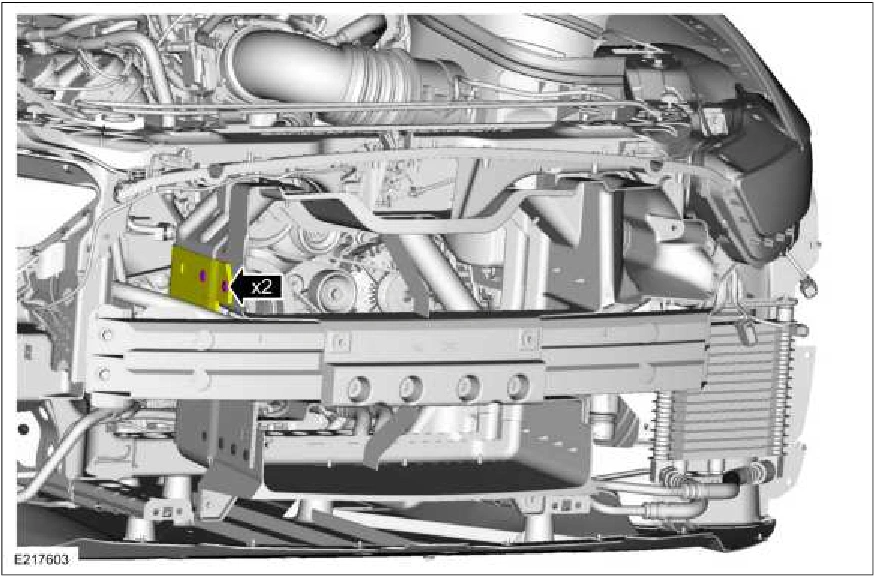

4. NOTE: On both sides.

Remove the pin-type retainers and position the air deflector side panel aside.

Front Bumper - Vehicles With: SVT Performance Package — original illustration 2, reference 1658Original colors & callouts · Select to enlarge

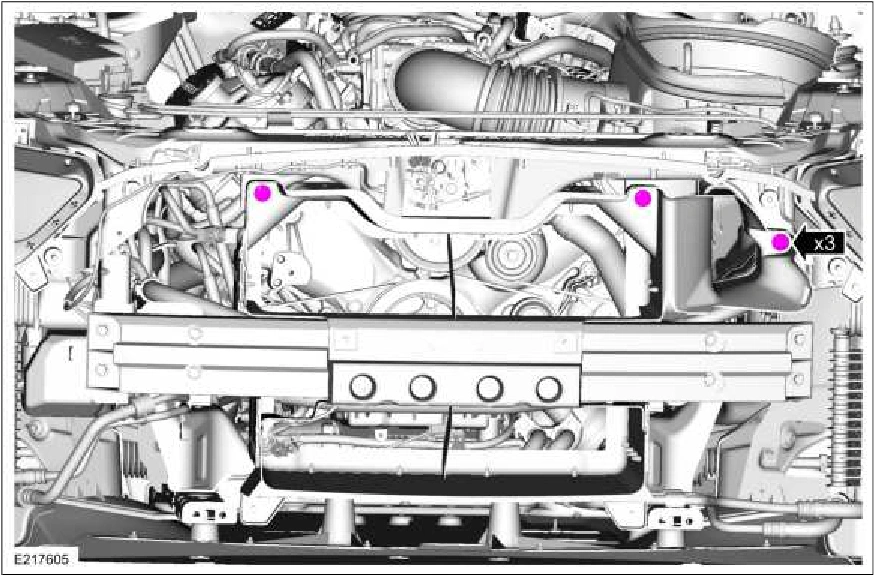

5. Remove the bolts and the radiator air deflector. Torque :

1. Lower radiator air deflector bolts: 71 lb.in (8 Nm)

2. Upper radiator air deflector bolts: 93 lb.in (10.5 Nm)

Source reference 1658
